Removing Clutch Slave Cylinder

1. Disconnect lines on clutch slave cylinder -1 and 2-  .
   1. 1.1 Disconnect return line -1-  on the clutch slave cylinder -3-  .
      1. 1.1.1 >9781 - Bleeding tool  must be ready and closed  (knurled screw turned clockwise as far as it will go).
      2. 1.1.2 Release and pull off quick connector on return line -5-  .
      3. 1.1.3 Pull return line -1-  off the bleeder valve -4-  and insert >9781 - bleeding tool  into the return line -1-  immediately.
   2. 1.2 Disconnect supply line -2-  on the clutch slave cylinder -3-  .
      1. 1.2.1 Lift up safety clip and release line connection -4-  .
      2. 1.2.2 Disconnect supply line -2-  .
   3. 1.3 Close off open connections using suitable stoppers.
   4. 1.4 Catch escaping brake fluid.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

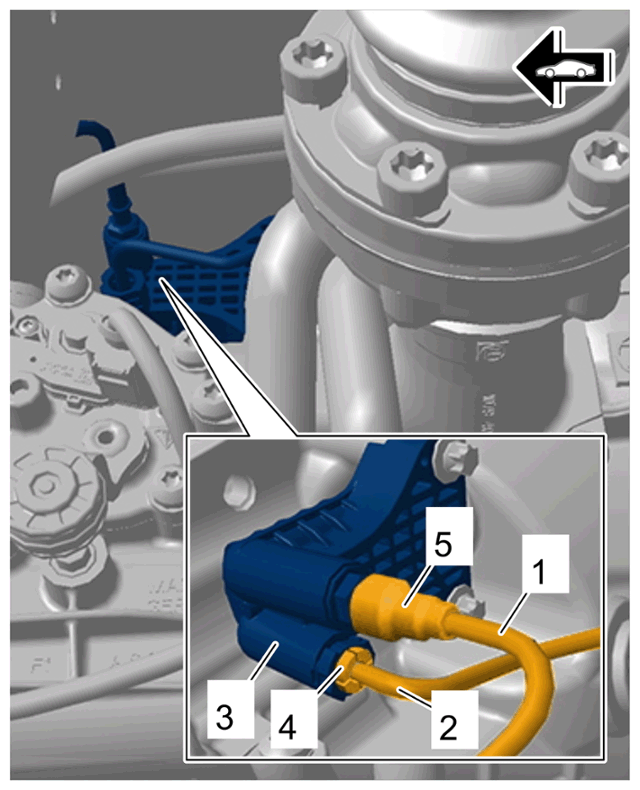

   Lines on clutch slave cylinder

2. Remove clutch slave cylinder -1-  .
   1. 2.1 Unscrew screws on clutch slave cylinder -2-  .
   2. 2.2 Guide clutch slave cylinder -1-  forward out of the opening in the transmission and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

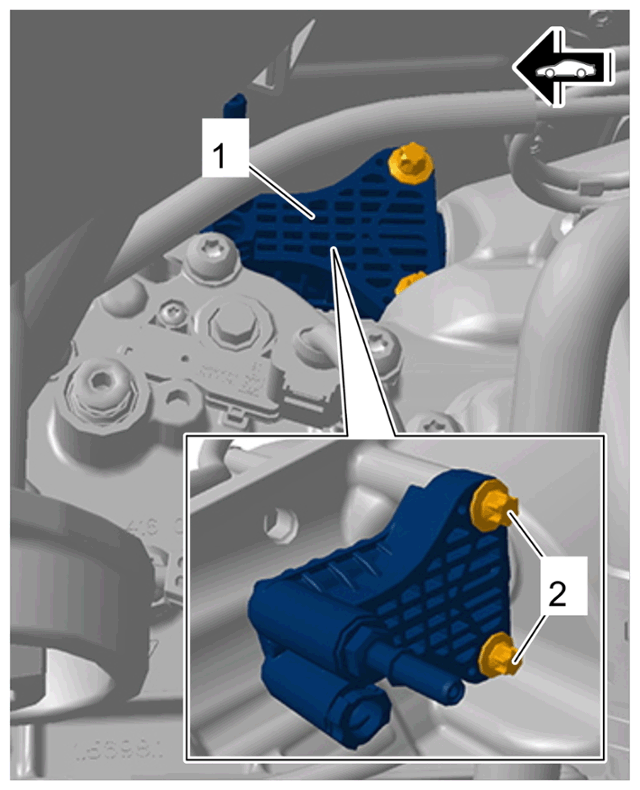

Clutch slave cylinder
