Installing Clutch Slave Cylinder

1. Install clutch slave cylinder -1-  .
   1. 1.1 Guide clutch slave cylinder -1-  into the transmission and move it against the spring force into installation position.
   2. 1.2 Fit screws for clutch slave cylinder -2-  and screw them in alternately and uniformly as far as they will go.
   3. 1.3 Tighten screws on clutch slave cylinder -2-  .

      > Tightening torque 23 Nm (17 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

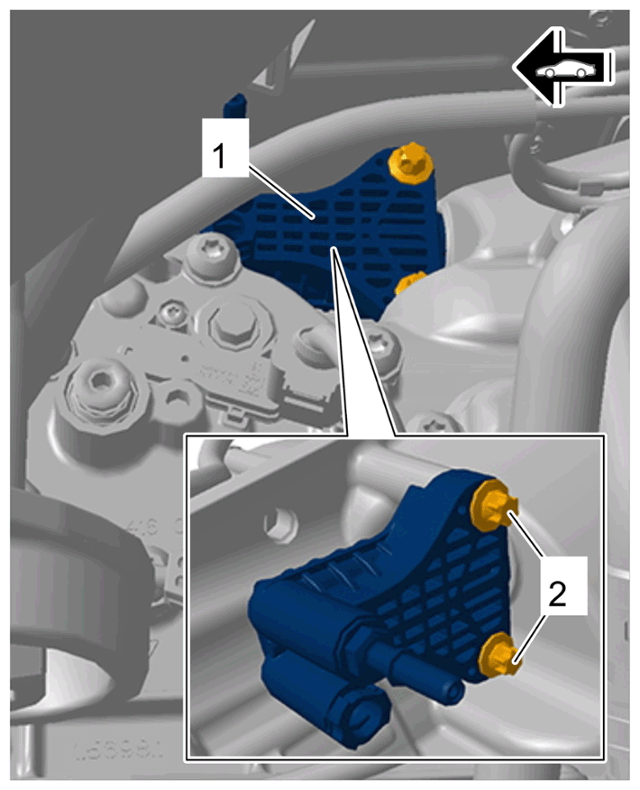

   Clutch slave cylinder

   Information

   • The return line for the clutch slave cylinder remains disconnected while bleeding the system.
   • It will be connected again after bleeding the clutch system.
2. Push on and lock supply line for clutch slave cylinder -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

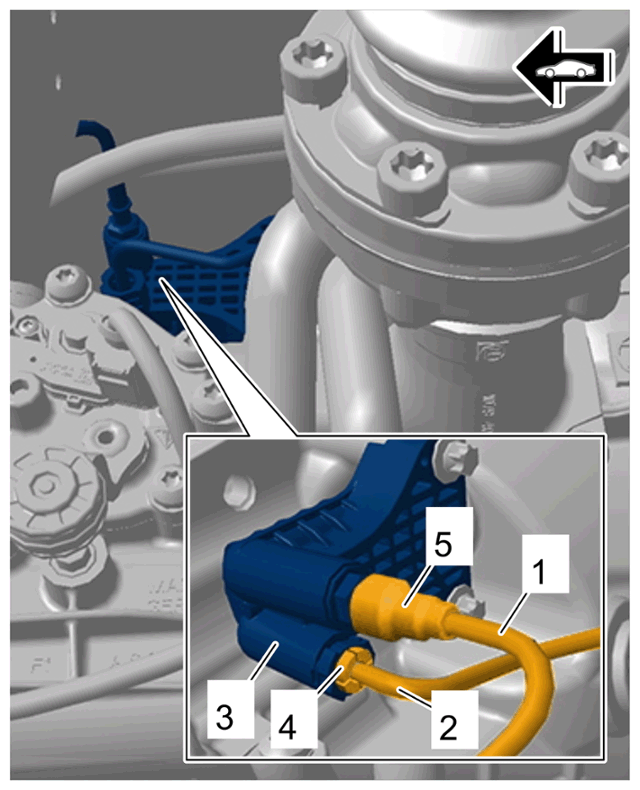

Lines on clutch slave cylinder
