Technical Values

Location	Description	Type	Basic value
Brake booster to mounting saddle	Hexagon nut, M8, replace	Tightening torque	23 Nm (17 ftlb.)

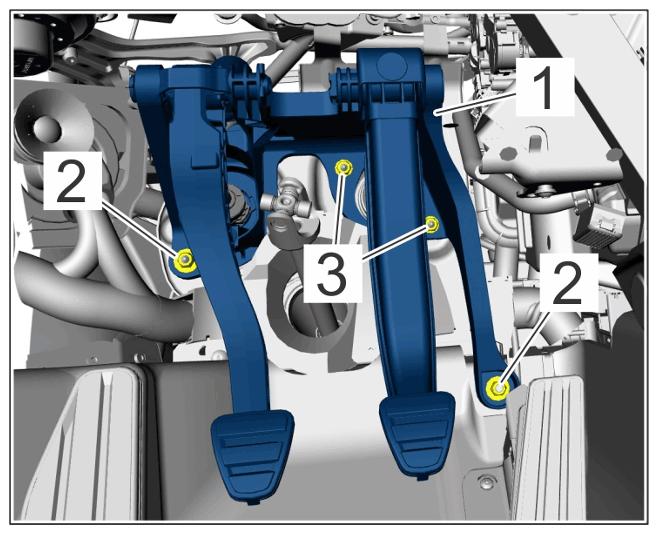

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake booster on mounting saddle
Mounting saddle to body	Item 2: Hexagon-head bolt, M8 x 25	Tightening torque	23 Nm (17 ftlb.)

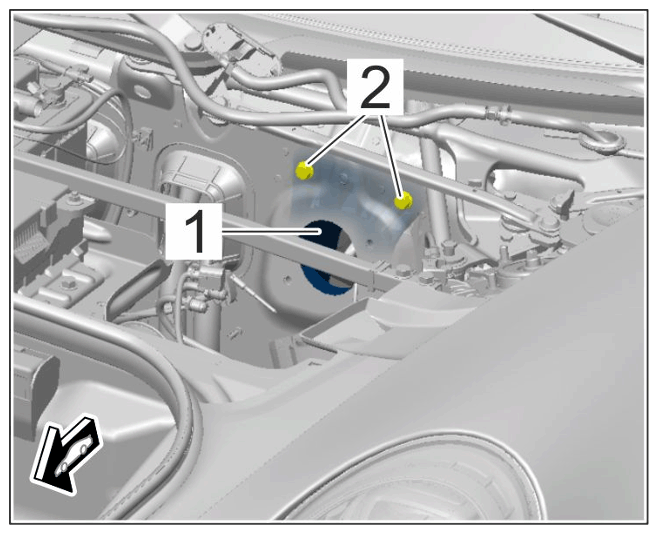

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening mounting saddle, top
Mounting saddle for manual transmission to body	Item 2: Hexagon nut, M8	Tightening torque	23 Nm (17 ftlb.)

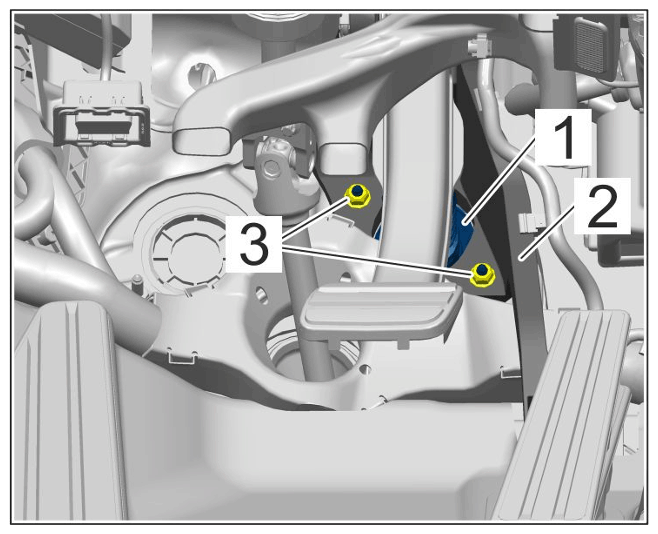

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Manual transmission mounting saddle in the footwell (cut-out)
