Subsequent Work

For vehicles with PDCC : Secure PDCC components in the oil cooler area.
430419 REMOVING AND INSTALLING VALVE BLOCK (REAR)
1. 1.1 Remove stoppers and secure PDCC lines in the oil cooler area.
2. 1.2 Install valve block.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

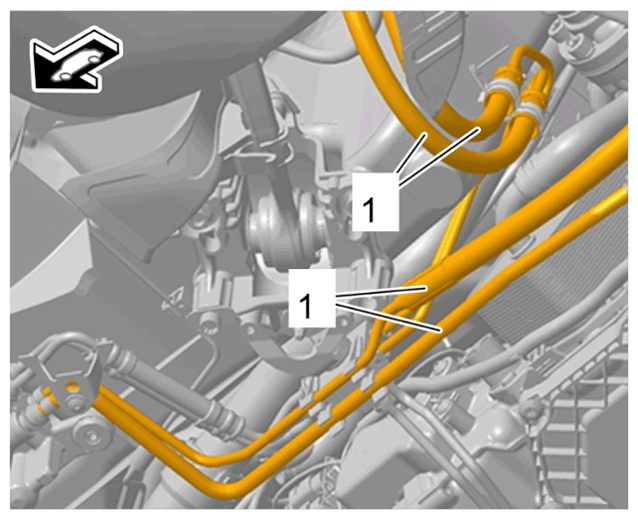

PDCC lines on rear valve block
Top up transmission oil.
399055 CHANGING OIL FOR FINAL DRIVE (PDK GEAR WHEEL SET)
Fill in ATF.
370255 CHANGING ATF
Install struts.
421319 REMOVING AND INSTALLING STRUT
Install rear cover.
> WM, 51941915 REMOVING AND INSTALLING REAR COVER
Check the coolant level and top up if necessary.
190101 CHECKING COOLING SYSTEM
