Removing ATF Pan

Information

• The seal on the ATF pan is not available as a spare part.
• Always replace ATF pan with seal following removal.

1. Remove ATF pan -14-  .
   1. 1.1 Unscrew screws on ATF pan in the sequence -13 to 1-  .
   2. 1.2 Remove ATF pan -14-  .
   3. 1.3 Replace ATF pan.
   4. 1.4 Replace aluminium screws and the drain plug.

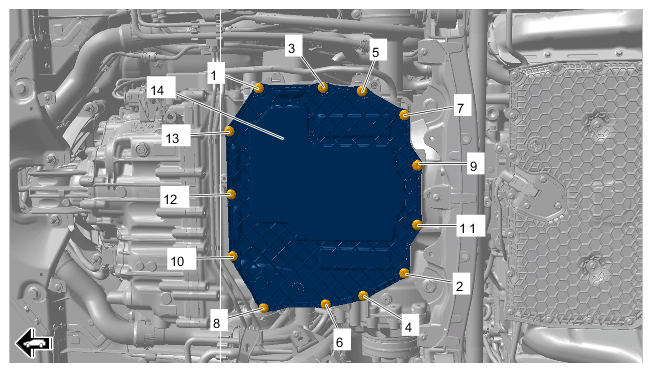

Fig 1: ATF Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for ATF pan
