Installing ATF Pan

Information

• Aluminium screws must always be replaced.
• Aluminium screws must be secured using the yield-strength procedure.
• To ensure that the screws are tightened uniformly, the specified tightening setting "light, medium or hard" must be used.
• The threshold torque (initial tightening) must be set on the >9768 - electronic torque wrench from 2 - 100 Nm (1.5 - 74 ftlb.)  when tightening using the yield-strength procedure.

1. Install new ATF pan -14-  .
   1. 1.1 Convert oil pipe at screw plug position or replace it if necessary.
   2. 1.2 Fit ATF pan -14-  using new  screws -1 to 13-  .
   3. 1.3 Tighten screws according to the tightening sequence -1 to 13-  .

      > Initial tightening 3 Nm (2.2 ftlb.)

      > Final tightening 60°

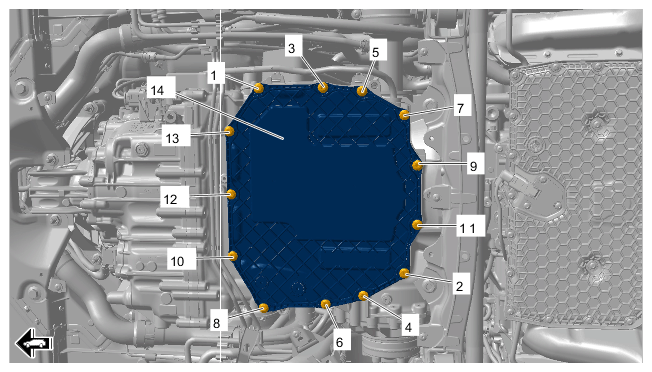

Fig 1: ATF Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for ATF pan
