Removing Vent Line

1. Remove vent line -1-  .
   1. 1.1 Disconnect vent line -1-  from breather pipes -2-  (-Arrows-  ).
   2. 1.2 Unscrew screws for active carbon filter holder -3-  and remove vent line -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

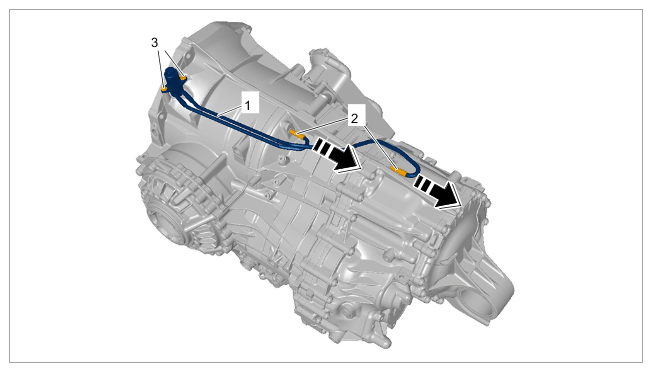

Vent line on double clutch transmission
