Installing Transmission Support

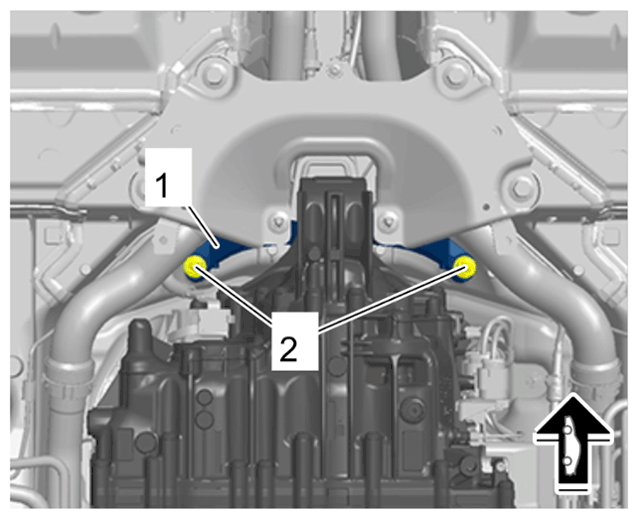

1. 1.1 Position transmission support -1-  with the arrow marking in direction of travel.
2. 1.2 Fit nuts -2-  , but do not tighten yet.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission support

Information

Check that the side stops are seated correctly. The arrow must be pointing forward.

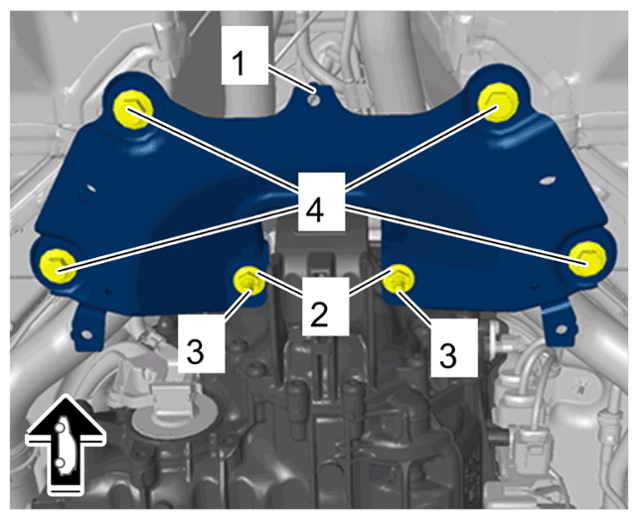

1. 2.1 Fit and tighten nuts -2-  .

   > Initial tightening 30 Nm (22.1 ftlb.)

   > Torque angle 60°

2. 2.2 Fit and tighten screws -4-  .

   > Initial tightening 30 Nm (22.1 ftlb.)

   > Torque angle 60°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission bracket

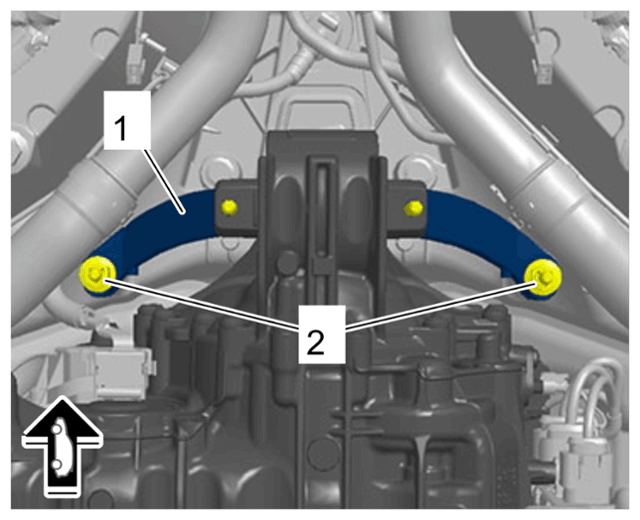

1. 3.1 Tighten nuts -2-  .

   > Initial tightening 30 Nm (22.1 ftlb.)

   > Torque angle 60°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission support

Information

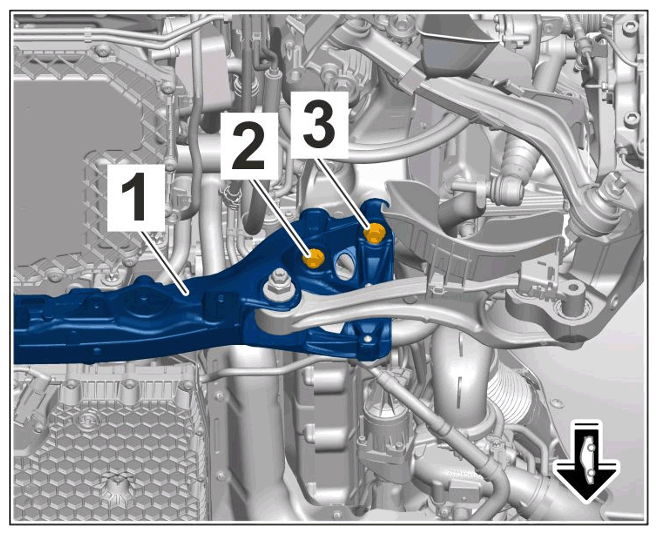

Carefully pull down trailing arm to position screws.

1. 4.1 Fit and tighten new  screw -2-  .

   > Initial tightening 70 Nm (51.6 ftlb.)

   > Final tightening + 180°

2. 4.2 Fit and tighten new  screw -3-  .

   > Initial tightening 70 Nm (51.6 ftlb.)

   > Final tightening + 180°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

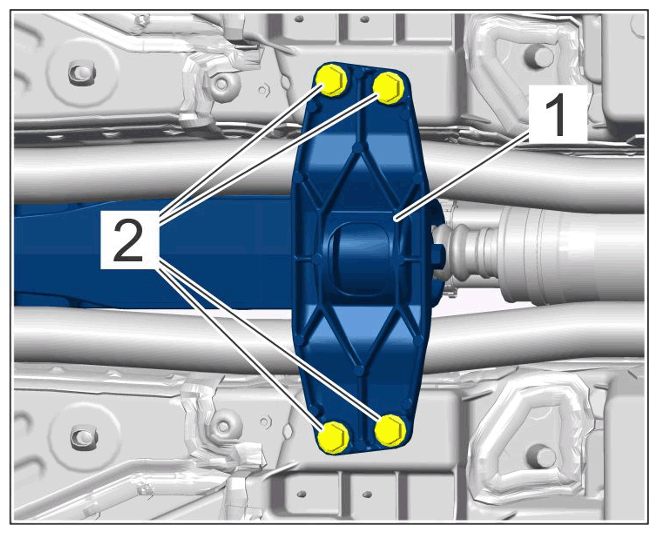

Rear axle carrier

Secure mounting plate for rear cardan shaft mounting -1-  .

1. 5.1 Fit and tighten new  screws -2-  .

   > Initial tightening 40 Nm (30 ftlb.)

   > Torque angle 45°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate for rear cardan shaft mounting

Secure connecting link -1-  .

1. 6.1 Fit and tighten new  nut -2-  and counter at the articulated bolt on the connecting link.

   > Initial tightening 50 Nm (36.9 ftlb.)

   > Final tightening angle + 50 (37 ftlb.) °

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting link (PDCC)

Secure connecting link -1-  .

1. 7.1 Fit and tighten new  nut -2-  and counter at the articulated bolt on the connecting link.

   > Initial tightening 40 Nm (29.5 ftlb.)

   > Final tightening + 30°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting link (conventional)

1. 8.1 Fit and tighten new  nut and screw -2-  .

   > Initial tightening 70 Nm (51.6 ftlb.)

   > Final tightening + 180°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

trailing arm
