WM, 373419 Removing And Installing PORSCHE Double-Clutch Transmission: Tools

Tool denomination	Type	Tool number	Image
electronic torque wrench from 2 - 100 Nm (1.5 - 74 ftlb.)	Special tool	>9768	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
support	VW tool	>T90003	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

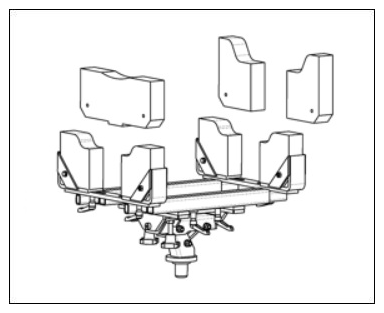

engine and gearbox jack	General service equipment	>VAS 6931	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
strapping belt	Special tool	>9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
hose clamp	VW tool	>3093	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Torx ring socket attachment, E18	Vehicle-specific service equipment	>VAS 6953	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Torque wrench, 40-200 Nm (30-148 ftlb.)	General service equipment	>V.A.G 1332	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
