Removing Support

  1. Remove selector support -1-  .
    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Lift up selector support -1-  as far as required until the cable plug -3-  is accessible.
    3. 1.3 Release and disconnect cable plug -3-  .
    4. 1.4 Remove selector support -1-  .

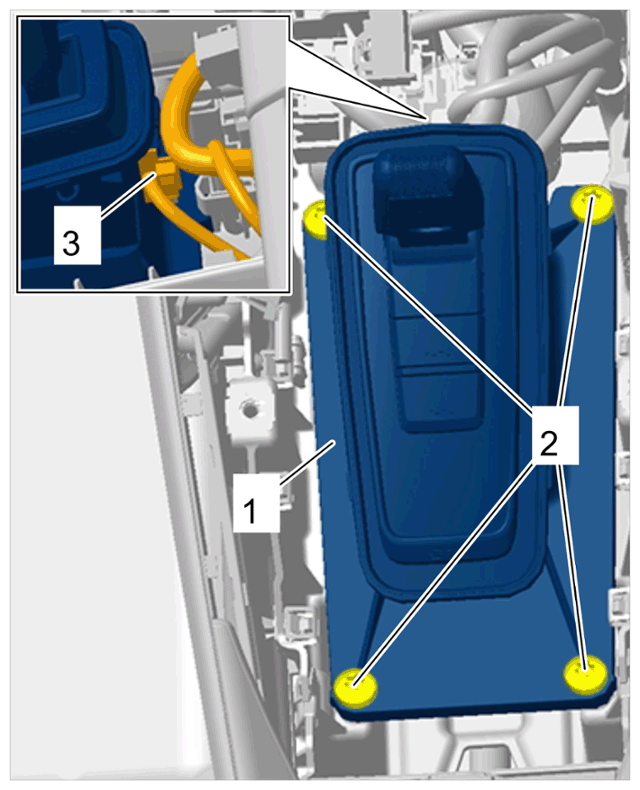

G15509402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Selector support
