Remove Handle

  1. Remove handle -1-  .
    1. 1.1 Tilt handle -1-  forward -Arrow-  until the threaded pin -2-  is flush with the bore -3-  .
    2. 1.2 Unscrew threaded pin -2-  .
    3. 1.3 Remove handle -1-  by pulling it upwards.

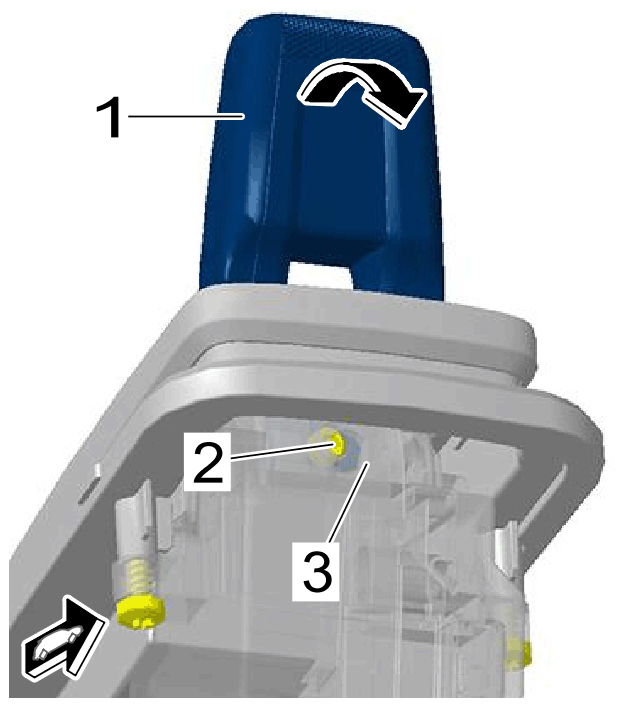

G15509398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Handle
