Installing Handle

Information

Make sure that the selector lever is seated correctly before screwing in the screw.

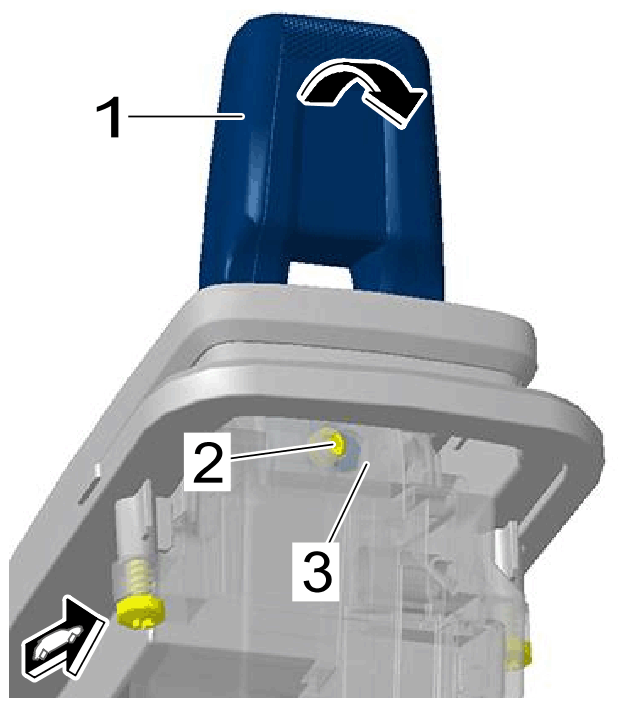

1. Install handle -1-  .
   1. 1.1 Position handle -1-  in the selector support.
   2. 1.2 Tilt handle -1-  forward -Arrow-  until the threaded pin -2-  can be screwed in through the bore -3-  .
   3. 1.3 Screw in threaded pin -2-  , engage and tighten.

      > Tightening torque 3 Nm (2.2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Handle
