Changing ATF

Information

To ensure that the transmission is filled correctly, the vehicle must be horizontal on the lifting platform.

Information

ATF specifications for Porsche Doppelkupplung (PDK):

• Storage: Store in a dry place, away from direct sunlight, at a temperature not less than -40°C and not higher than +50°C
• Storage time: 5 years from fill date on container
• Before using oil: Shake the container well for at least 10 seconds.

Information

Only use oil approved by Porsche in the Porsche Doppelkupplung (PDK), see Parts Information.

1. Drain ATF.
   1. 1.1 >VAS 6622A - Used Oil Collection and Extraction Unit  must be placed under the transmission.
   2. 1.2 Unscrew oil drain plug -1-  and drain ATF.
   3. 1.3 Tighten new  oil drain plug -1-  .

      > Tightening torque 16.5 Nm (12.2 ftlb.)

      Replace sealing ring.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

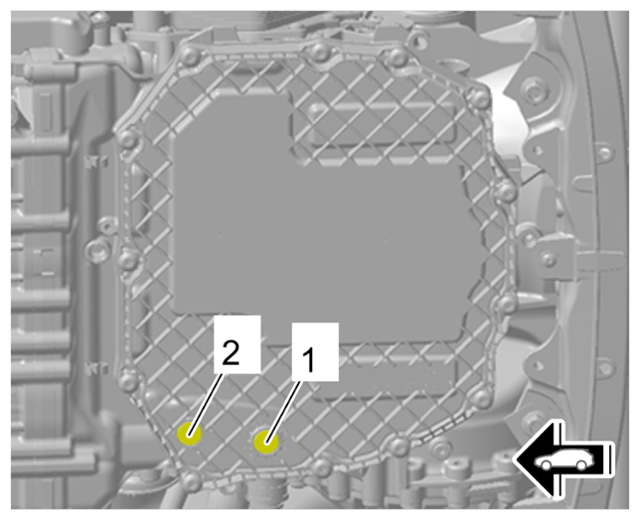

   ATF drain plug and filler screw

   Information

   The oil filler screw will be replaced and tightened to the required tightening torque while checking and topping up ATF  .

2. Fill in ATF.
   1. 2.1 Unscrew oil filler screw -1-  .
   2. 2.2 Fill in ATF at the filler bore using >VAS 6563 - Manual metering pumps, Porsche set  until ATF emerges.
   3. 2.3 Screw in oil filler screw -1-  slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

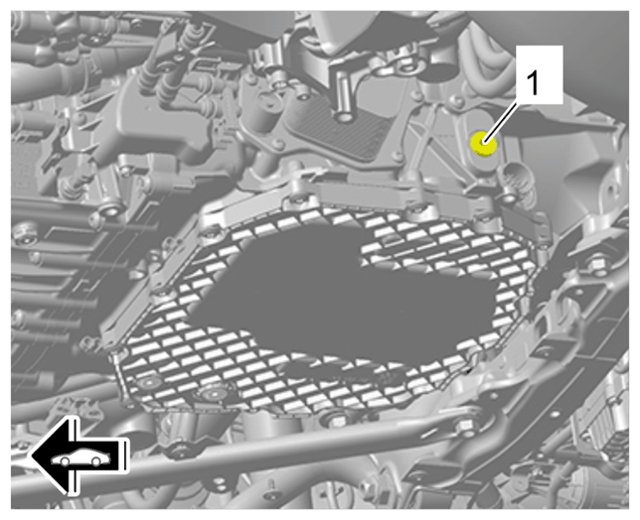

Oil filler screw for PDK
