Test Prerequisites

Emergency programme must not be activated.
Electrical loads, lights and air conditioning are switched off.
Vehicle is horizontal on the lifting platform.
Selector lever is engaged in position P and parking brake is actuated.
PIWIS Tester is connected for reading out the transmission temperature and engine speed.

WARNING: Hot fluid

Information

To ensure that the transmission is filled correctly, the vehicle must be horizontal on the lifting platform.

Check and top up ATF.

1.1 >VAS 6622A - Used Oil Collection and Extraction Unit must be placed under the transmission.

1.2 Unscrew screw plug -2- on the adjusting tube.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

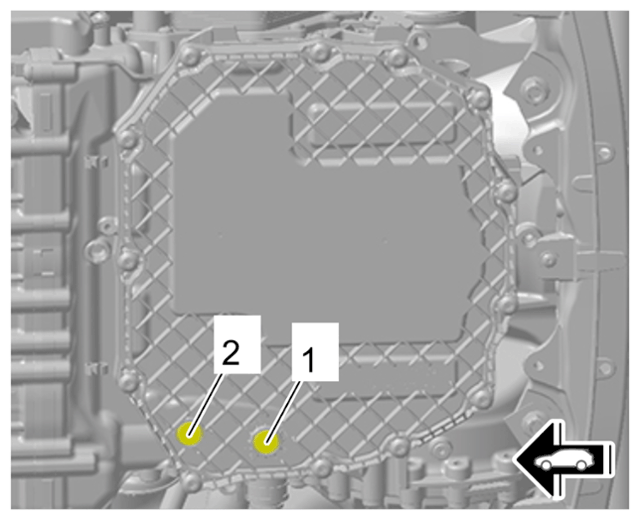

ATF drain plug and filler screw

1.3 Unscrew oil filler screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

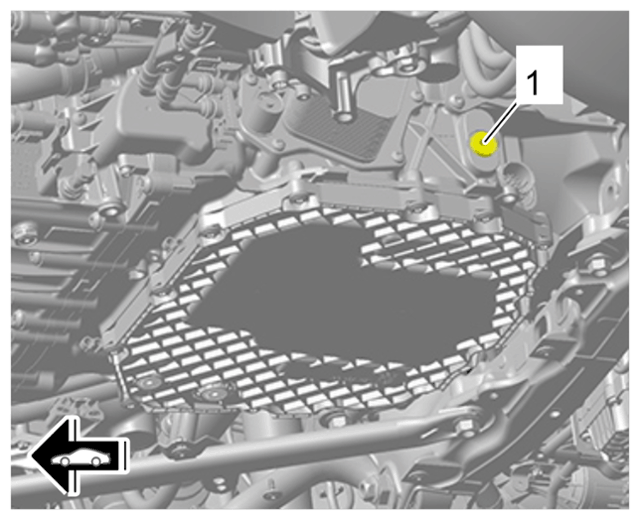

Oil filler screw - PDK

1.4 Fill in ATF slowly at the filler bore using >VAS 6563 - Manual metering pumps, Porsche set until ATF emerges at the adjusting tube .

Connect the PIWIS Tester to the vehicle, start it and then switch on ignition.
Start the diagnostic software.
Select Transmission electronics (PDKII) control unit.
Select the Maintenance/repairs tab.
Information

Before starting the "oil filling" procedure using the PIWIS Tester, fill a hand pump fully with ATF and have it ready.
Select Oil filling with F12.
Follow the instructions on the Tester.
Top up ATF.
1. 8.1 Unscrew oil filler screw -1- .
2. 8.2 Fill in ATF slowly at the filler bore using >VAS 6563 - Manual metering pumps, Porsche set until ATF emerges at the adjusting tube .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filler screw - PDK
As soon as the oil thread on the adjusting tube breaks off, screw in and tighten the screw plug -2- .
> Tightening torque 16.5 Nm (12.2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF drain plug and filler screw
Screw in and tighten new oil filler screw -1- .
> Tightening torque 27 Nm (19.9 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filler screw - PDK
