Adjusting Rear-Axle Camber

1. Turn the camber eccentric adjuster -1-  as required after loosening the lock nut -2-  .

   Then, tighten lock nut to >Tightening torque 100 Nm (73.8 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

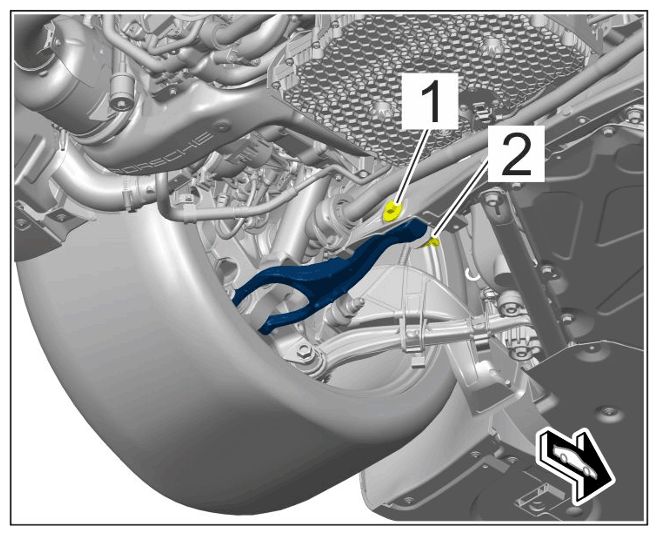

Rear-axle camber eccentric
