Adjusting Front-Axle Camber

Move (technical equipment space) cover into service position.
852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER - information on "Removing"

Information

The spring-strut mount is made of aluminum, so do not tap it, but use a suitable lever to prevent damage.
The camber is adjusted by moving the spring strut -1- at the spring strut dome.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

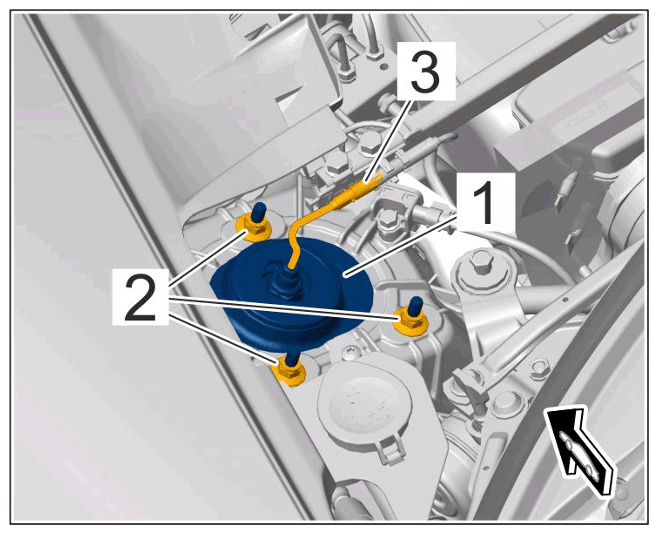

Attachment of spring strut to body
1. 2.1 Loosen three nuts -2- on the spring strut and move spring strut as required.
2. 2.2 Tighten nuts -2- .
  > Tightening torque 30 Nm (22 ftlb.)
Secure (technical equipment space) cover.
852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER - information on "Installing"
