Measuring Height Of Front And Rear Axle

Information

• The vehicle height at front and rear axle cannot be adjusted.
• For the height check, put the vehicle on a level surface or on the measuring platform (ready to drive with full fuel tank and tools but without driver or additional weights).
• Compress (push down) vehicle at front and rear axles twice or three times and allow it to spring back freely.
• Measure from road contact surface to measuring point on the body.
• A quick check can be performed by measuring from the lower edge of the wing to the centre of the wheel.

For vehicles with front axle lift system  : Lower the vehicle using the button on the dashboard.

Front-axle height  : Measure from road contact surface to the measuring point -1-  on the cross member of the body.

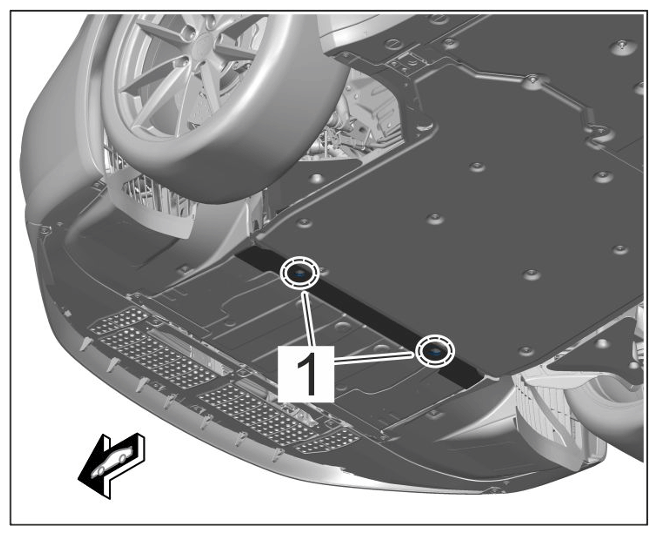

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring points for front-axle height

Rear-axle height  : Measure from road contact surface to outer rear axle carrier (outer area close to underbody panelling) -1-  .

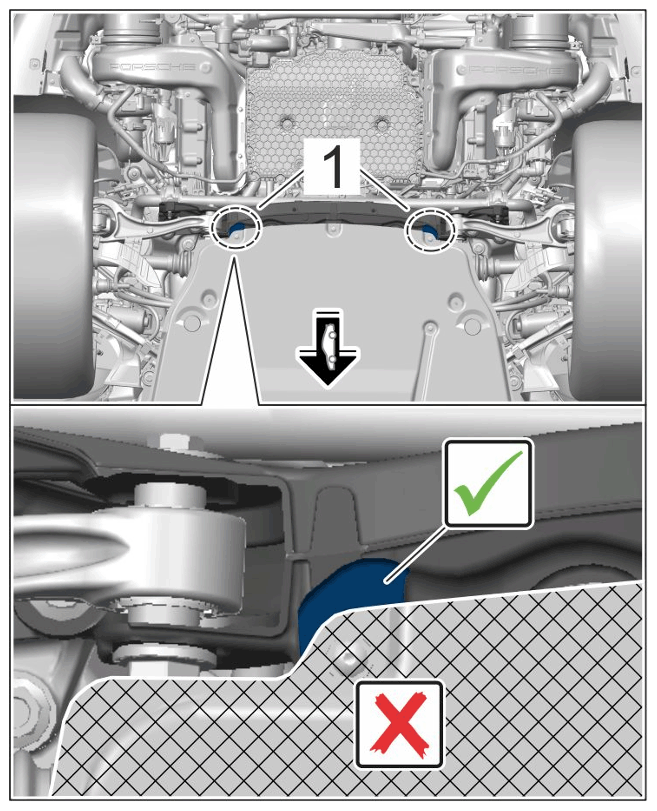

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Measuring points for rear-axle height
