Preparing The Vehicle (Vehicles Without Central Wheel Lock)

  1. Drive the vehicle onto the wheel-alignment stand without tension. Ensure that axle components are not under tension by moving the vehicle forward and backward several times if necessary.

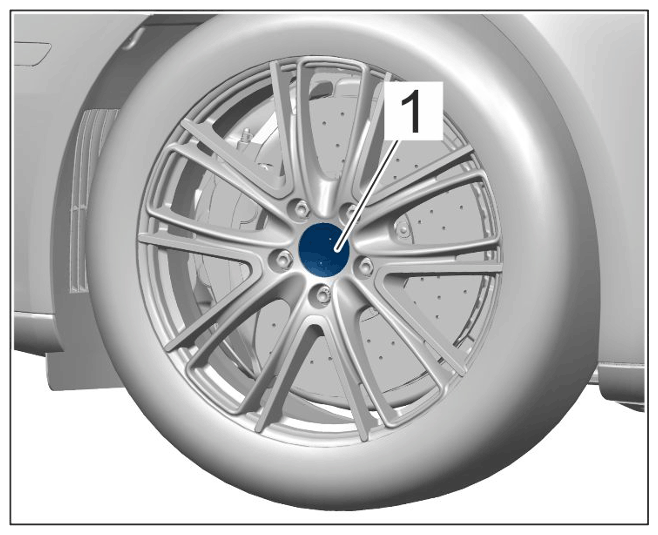

  2. Remove hub caps -1-  from all four wheels using >9229/1 - puller hook  .
    G15519848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hub cap

    Information

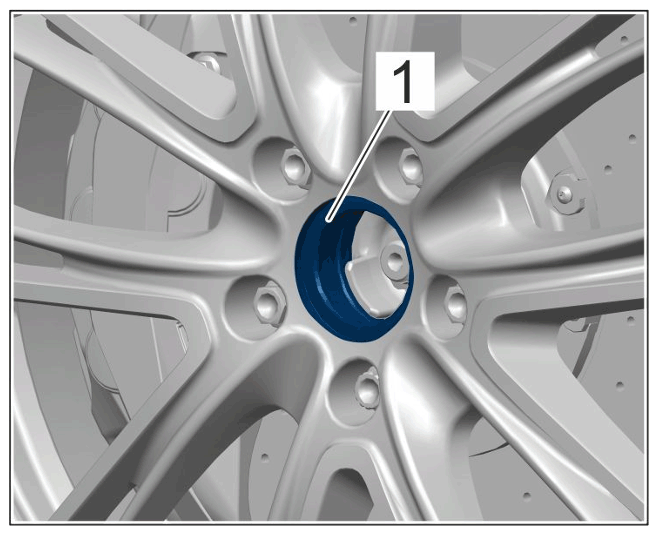

    Contact surfaces of the wheel hub bore -1-  must be clean and smooth. Even minor contamination (e.g. paint residues) in the wheel hub bore can result in incorrect measurements.

    G15519849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wheel hub bore

    Information

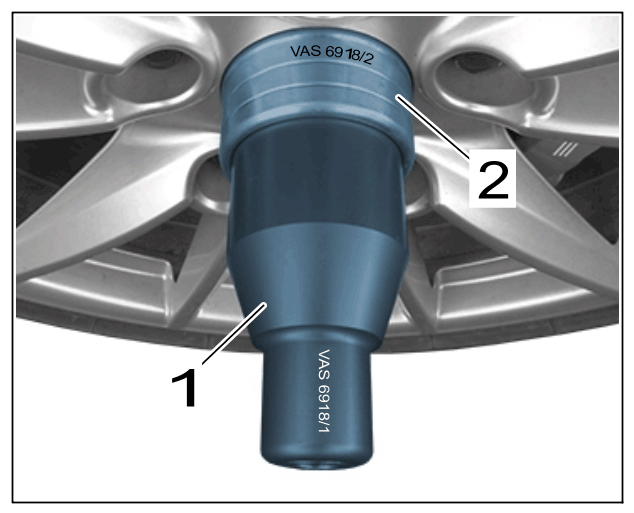

    When fitting the quick-clamping unit -1-  , make sure that the centering ring -2-  is fitted correctly. The tool designation on the centering ring -2-  must be legible by the worker, but not necessarily at the top.

    G15519850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Quick-clamping unit on wheel

  3. > VAS 6918 - Quick clamping device  must be clamped in the wheel hub bore on all four wheels.
  4. Fit measured-value pickups to the >VAS 6918 - quick-clamping unit  on all four wheels.
