Removing Control Unit For Tyre Pressure Monitoring (TPM)

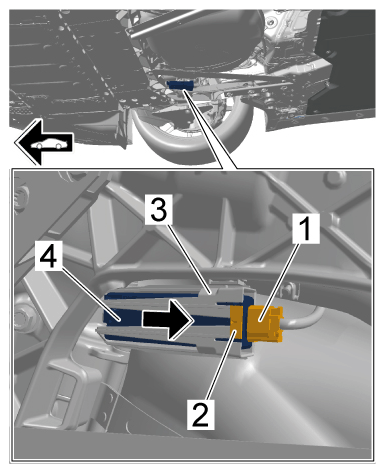

1. Remove RDK control unit -4-  .
   1. 1.1 Release and disconnect external electric plug connection for TPM control unit -1-  .
   2. 1.2 Release locking mechanism -2-  on holder for TPM control unit -3-  .
   3. 1.3 Remove TPM control unit -4-  from TPM control unit holder -3-  (-arrow-  ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

RDK control unit
