Removing Wheel Electronics

The wheel electronics unit is located on the valve in the outer rim base.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

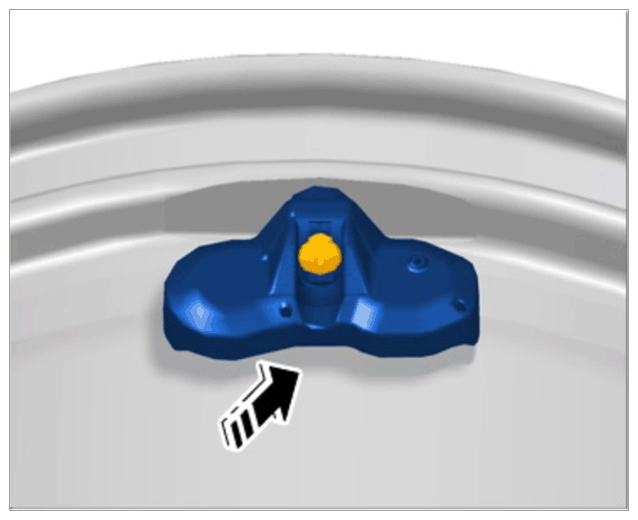

Overview of wheel electronics

1. Remove the fastening screw -1-  for the wheel electronics unit. If necessary counter in the bore at the valve foot using a suitable assembly pin, e.g. steel pin Ø approx. 1.8 mm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

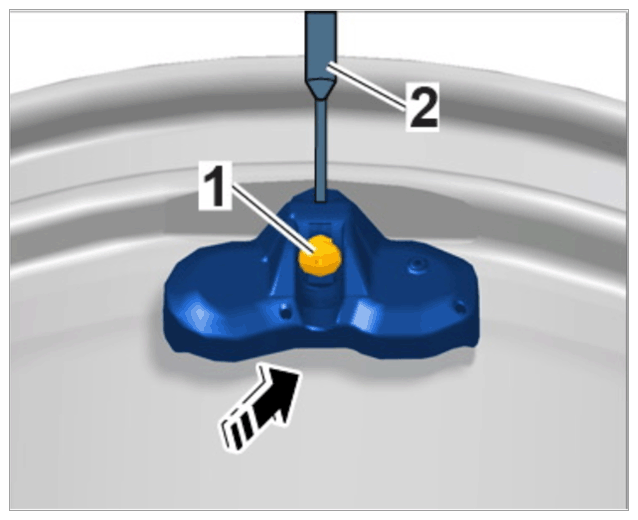

   Wheel electronics mounting

2. Undo the union nut and take out the valve.
