Removing Connecting Link For Anti-Roll Bar

  1. Remove connecting link -1-  .

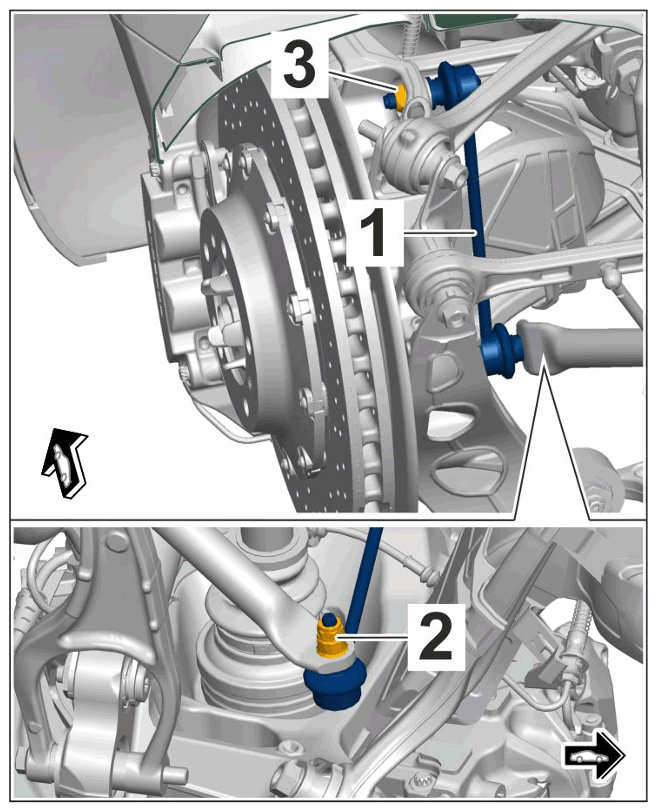

    G15519681Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (conventional)

    1. 1.1 Unscrew nut -2-  on the anti-roll bar and counter at the articulated bolt on the connecting link.
    2. 1.2 Unscrew nut -3-  on the wheel bearing housing and counter at the articulated bolt on the connecting link.
