Installing Connecting Link For Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

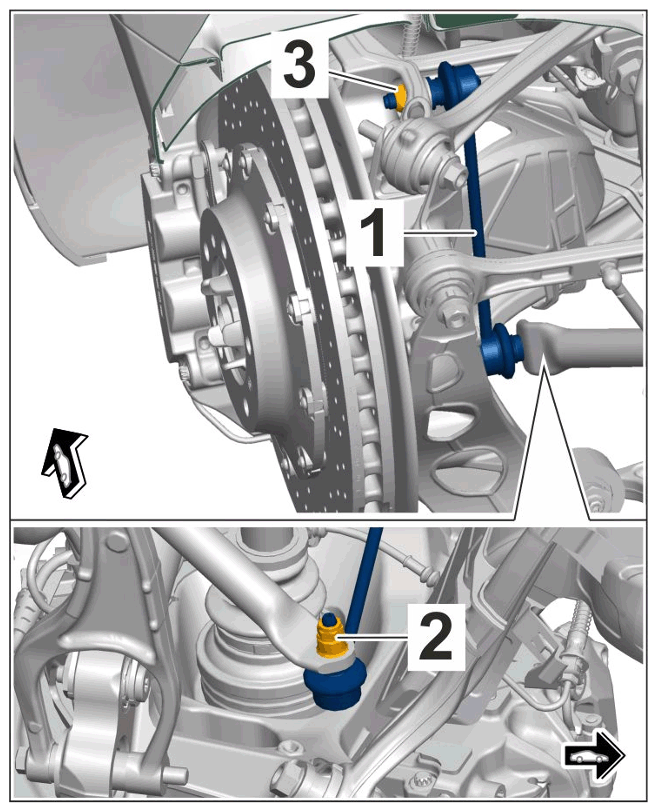

Mounting for connecting link (conventional)

1. 1.1 Tighten nut -3-  on the wheel bearing housing. >Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 40°
2. 1.2 Tighten nut -2-  on the anti-roll bar. >Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°
