Removing Anti-Roll Bar

Information

The anti-roll bar -1-  is removed together with anti-roll-bar mounts -2-  and anti-roll bar clamps -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

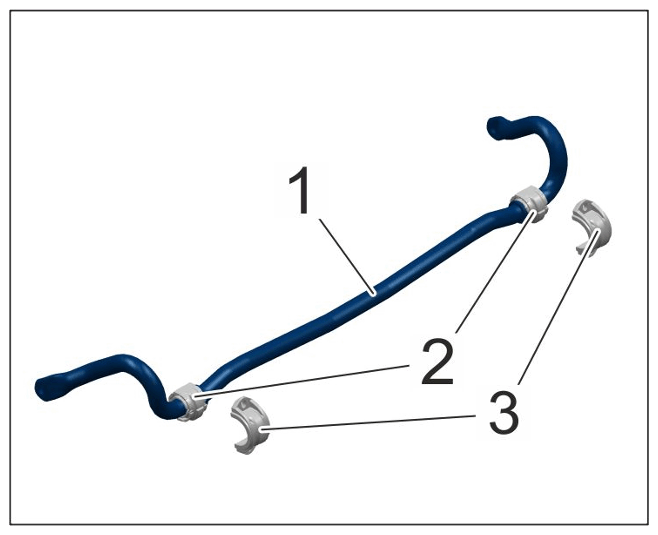

Anti-roll bar with anti-roll bar mounts and anti-roll bar clamps (shown on the 992 Carrera)

1. Remove trailing arm -1-  from wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for trailing arm

   1. 1.1 Loosen threaded joint securing trailing arm to wheel bearing housing -2-  .
2. Remove anti-roll bar on both sides of the vehicle from the connecting link -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for connecting link (conventional)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for connecting link (PDCC)

   1. 2.1 Unscrew nut -2-  and counter at the articulated bolt on the connecting link.
3. Remove anti-roll bar clamps -1-  on both sides of the vehicle from the rear axle carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

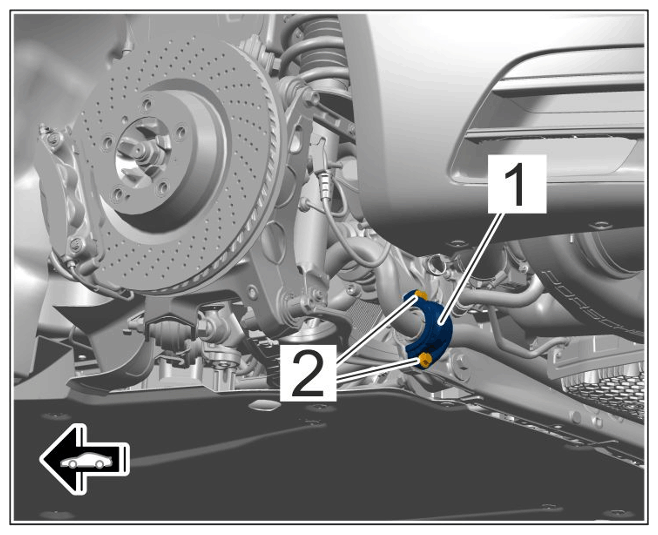

   Mounting for anti-roll bar clamps

   1. 3.1 Unscrew and remove screws -2-  .
4. Turn anti-roll bar -1-  (-arrow A-  ) and guide it down and out -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

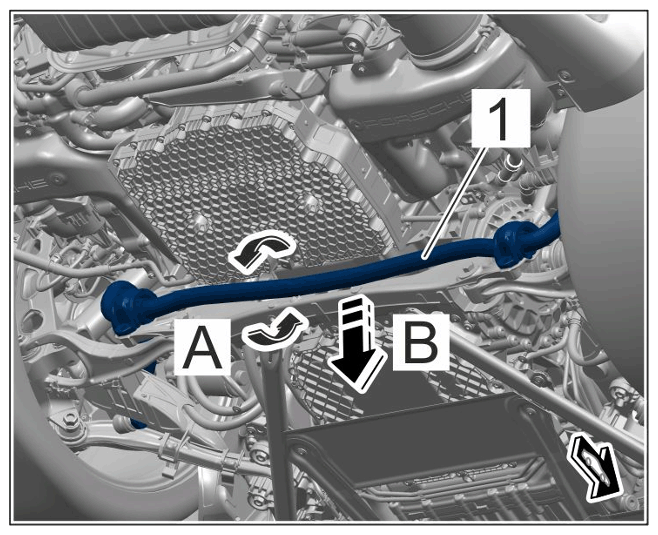

   Guiding out anti-roll bar

5. If the anti-roll bar, anti-roll-bar mounts and anti-roll bar clamps are not replaced  : Secure anti-roll-bar mounts -1-  with a tie-wrap -2-  immediately after removing the anti-roll bar so that the anti-roll-bar mounts -1-  do not become detached from the anti-roll bar clamps -3-  .

   If an anti-roll-bar mount still becomes detached from the anti-roll bar clamp, the anti-roll-bar mount must be installed as described under

   Refer to the appropriate service information.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

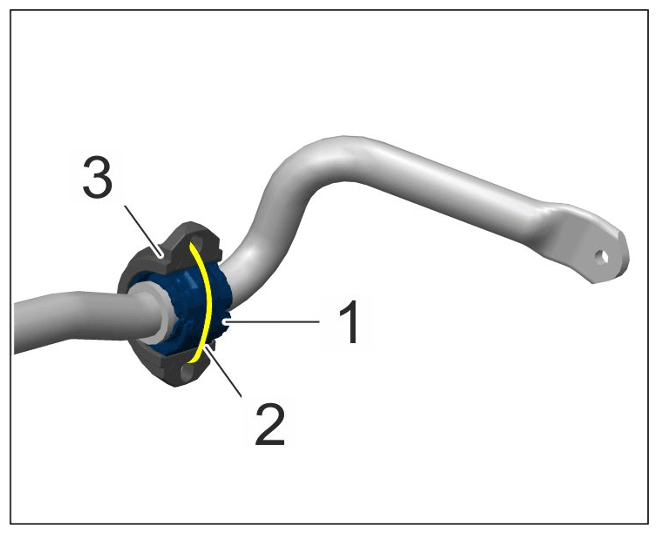

   Securing anti-roll-bar mount with a tie-wrap

6. If the anti-roll bar, anti-roll-bar mounts or anti-roll bar clamps are replaced  : Remove and install anti-roll-bar mounts.

   Refer to the appropriate service information.
