Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Supporting mount to piston rod Item 1: Lock nut, M12 x 1 Tightening torque 35 Nm (25.8 ftlb.) + 2 Nm (1.5 ftlb.)

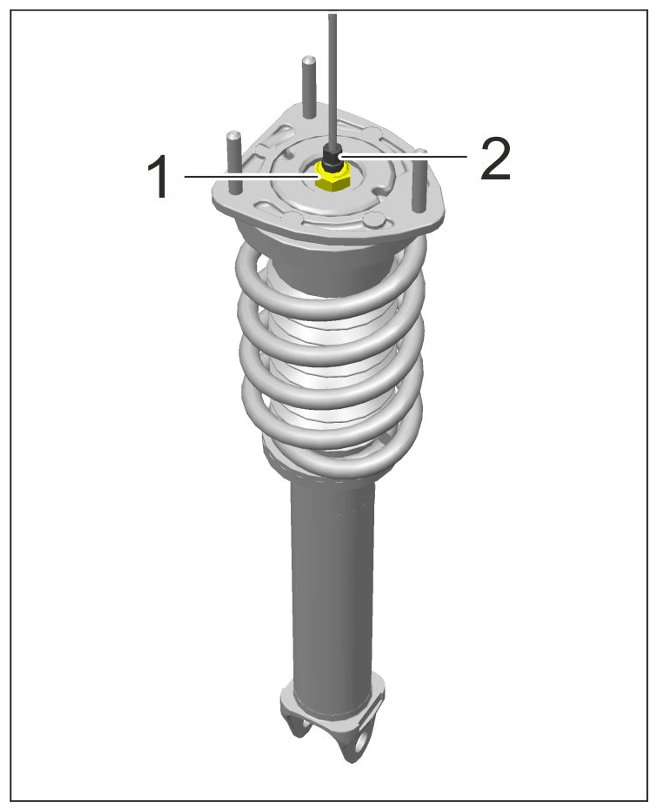

G15519639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring strut, rear
