Component Overview

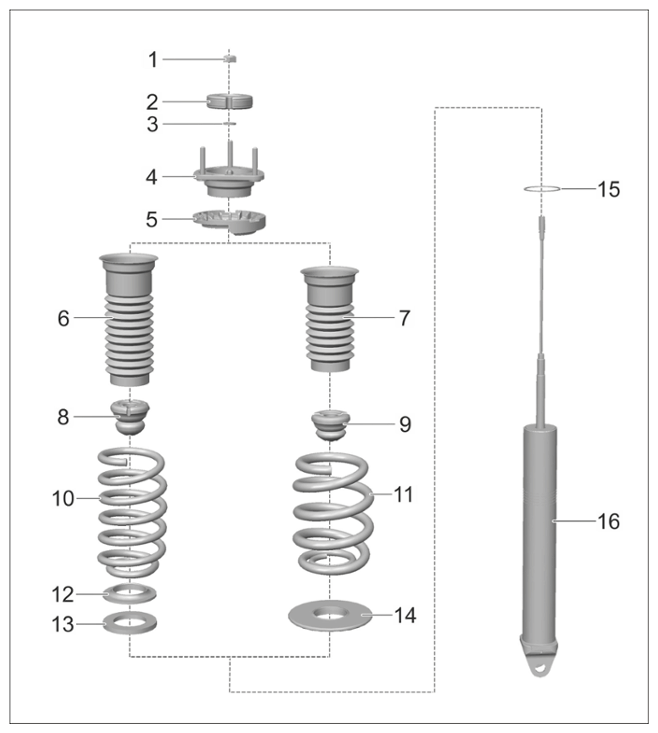

Component overview of rear spring strut
| 1 | Hexagon nut, M12 (always replace following removal) |
| 2 | Insert |
| 3 | Washer |
| 4 | Supporting mount |
| 5 | Upper spring plate |
| 6 | Bellows (vehicles with standard chassis) |
| 7 | Bellows (vehicles with sports chassis -10 mm) |
| 8 | Rubber stop (vehicles with standard chassis) |
| 9 | Rubber stop (vehicles with sports chassis -10 mm) |
| 10 | Coil spring (vehicles with standard chassis) |
| 11 | Coil spring (vehicles with sports chassis -10 mm) |
| 12 | Lower spring plate (vehicles with standard chassis) |
| 13 | Concave washer (vehicles with standard chassis) |
| 14 | Concave washer (vehicles with sports chassis -10 mm) |
| 15 | Circlip |
| 16 | Vibration damper |
