Technical Values

Location	Description	Type	Basic value
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Spring strut mount to body	Item 2: Hexagon nut, M8	Tightening torque	30 Nm (22.1 ftlb.)

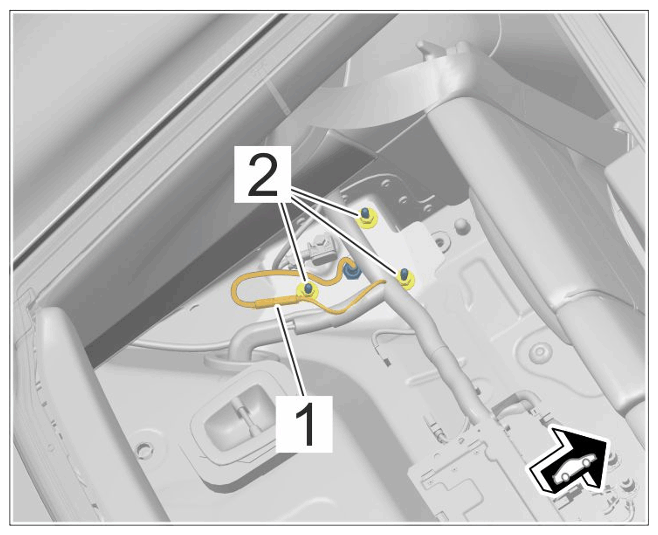

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear spring strut on body
Spring strut to wheel bearing housing	Item 2: Cheese head bolt M12 x 1.5	Tightening torque	110 Nm (81.1 ftlb.)

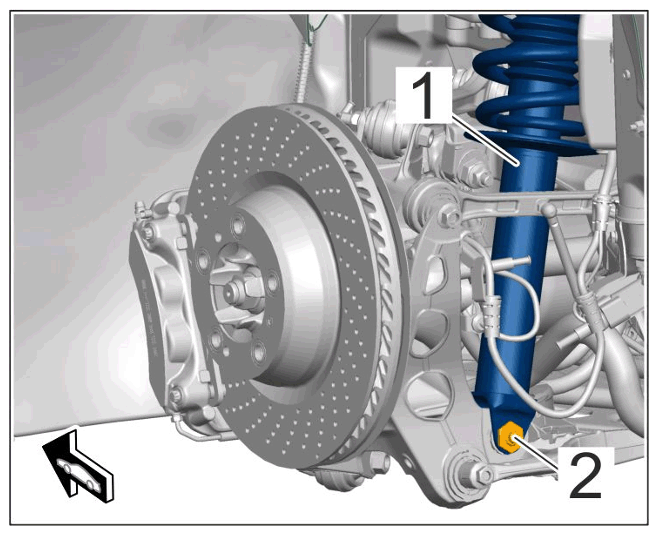

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut, rear on wheel bearing housing
