Removing Rear Spring Strut

  1. Remove foam -1-  .

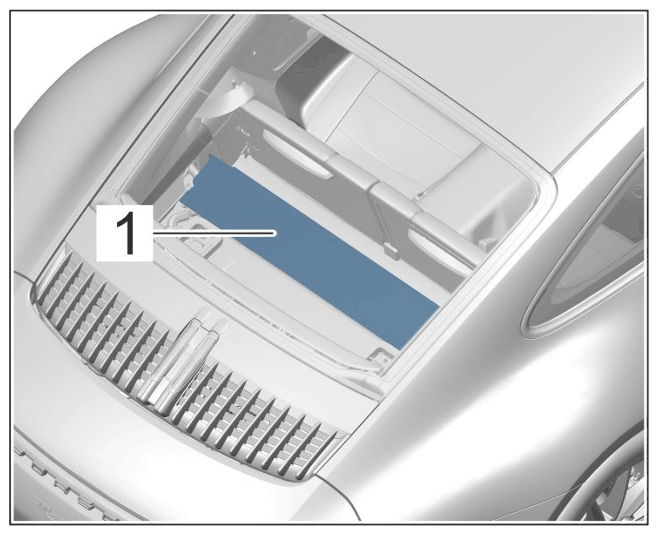

    G15519625Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Foam

  2. Remove rear spring strut from the body.

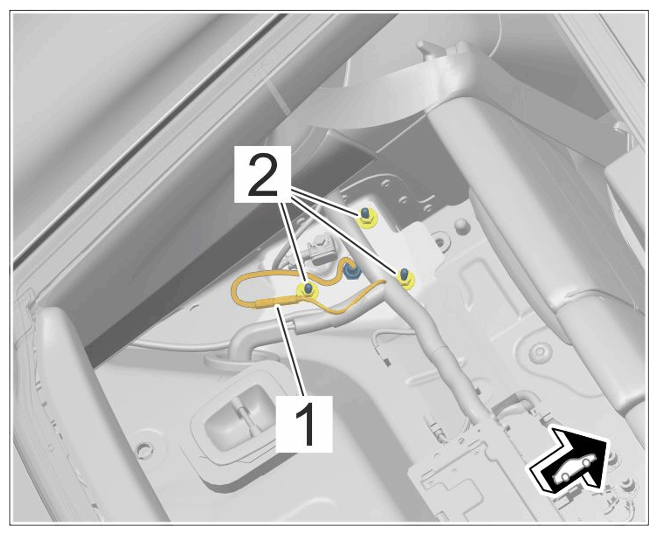

    G15519626Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on body

    1. 2.1 Release and unplug electric plug connection -1-  .
    2. 2.2 Unscrew nuts -2-  .
  3. Remove trailing arm -1-  from wheel bearing housing.
    G15519627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 3.1 Loosen threaded joint securing trailing arm to wheel bearing housing -2-  .
  4. Remove rear spring strut -1-  from the wheel bearing housing.

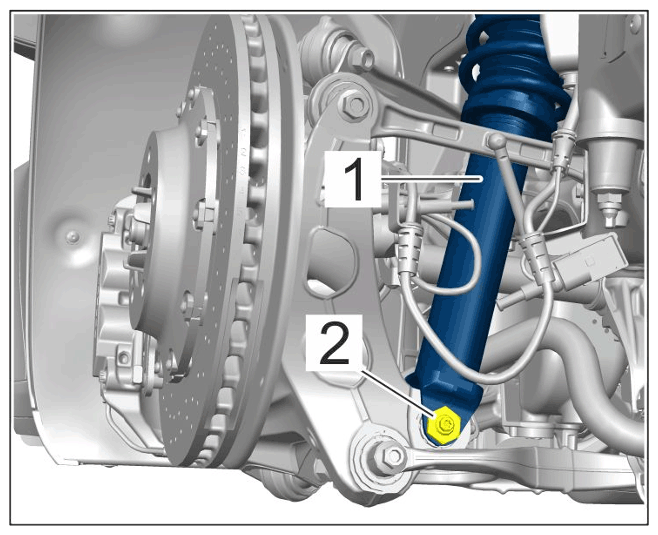

    G15519628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on wheel bearing housing

    1. 4.1 Loosen threaded joint -2-  .
  5. Remove rear spring strut by pulling it downwards.
