Technical Values

Location	Description	Type	Basic value
Wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal	Initial tightening	80 Nm (59 ftlb.)

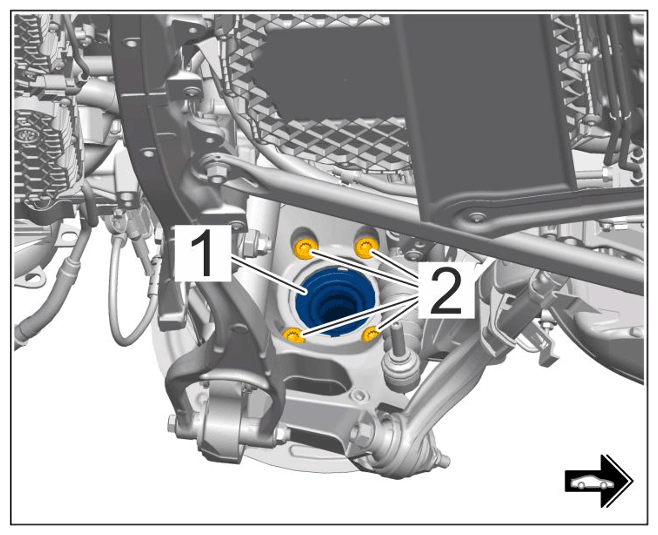

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing mounting
Wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal	Final tightening torque angle	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing mounting
Wheel bearing to wheel bearing housing	Internal serration screw, M12 x 1.25 x 45/Replace screws	Tightening torque	80 Nm (60 ftlb.)
Wheel bearing to wheel bearing housing	Internal serration screw, M12 x 1.25 x 45/Replace screws	Final tightening angle	+ 120°
