Removing Rear Wheel Bearing

Information

The pictures shown in this document may differ from the original.

Information

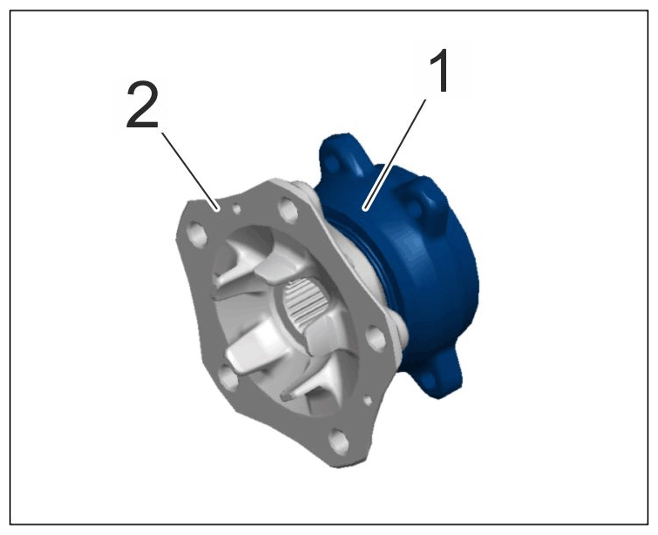

Wheel bearing -1-  is removed together with wheel hub -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel bearing and wheel hub

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

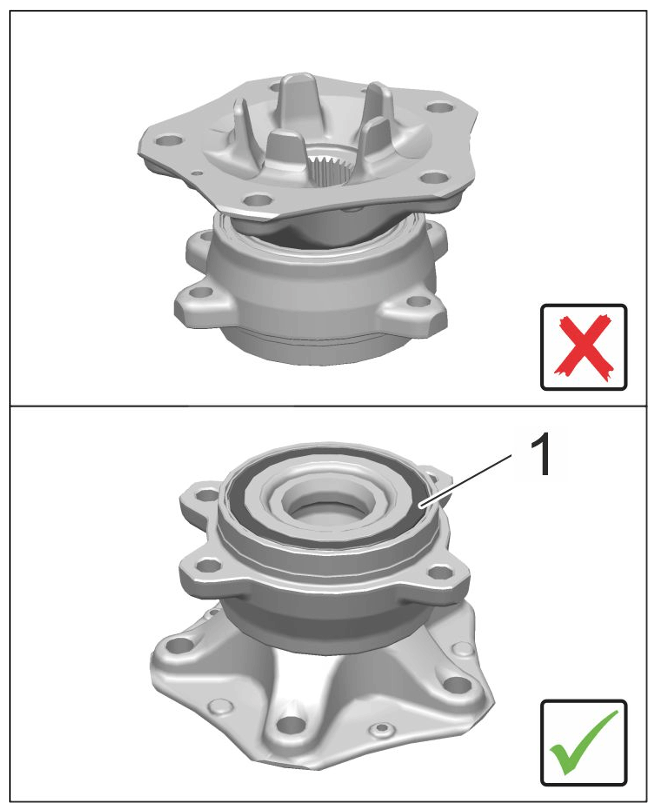

Wheel bearing unit

• The wheel bearing has a magnetised multipole seal -1-  , which acts as a pulse sender for the speed sensor.
• The multiple-pole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not damage the multipole seal and do not come into contact with magnetic objects (e.g. magnetised screwdriver, magnet).

1. Remove wheel bearing -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

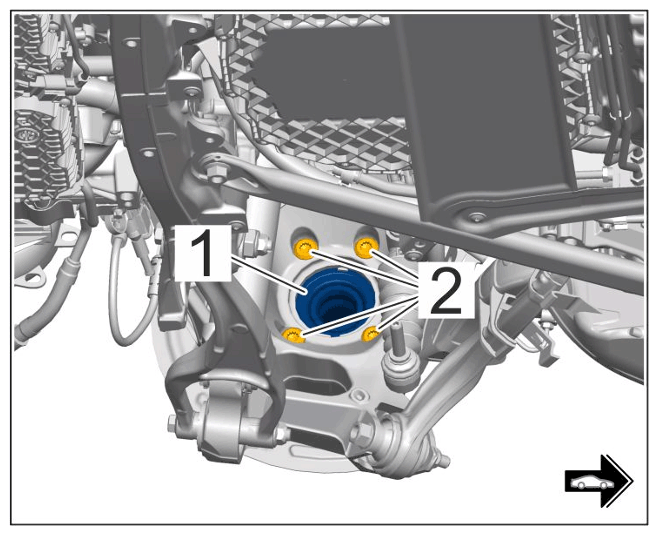

   Wheel bearing mounting

   1. 1.1 Unscrew screws -2-  .
   2. 1.2 Remove wheel bearing -1-  .
