Removing Wheel Bearing Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

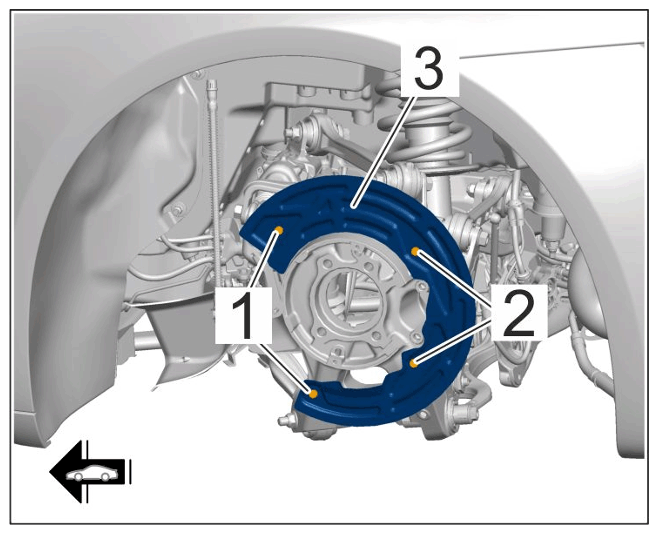

Mounting for brake disc cover plate

1. 1.1 Unscrew and remove screws -1 and 2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

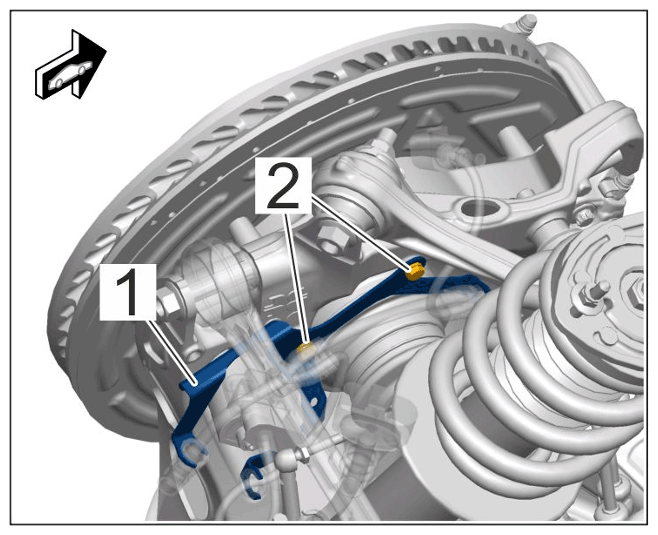

Mounting for wiring harness holder

1. 2.1 Unscrew and remove screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

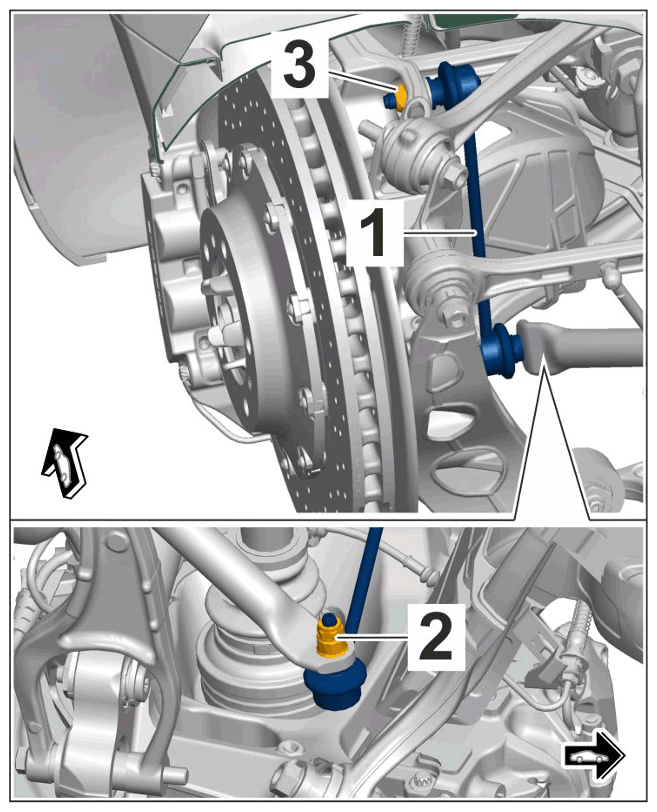

Mounting for connecting link (conventional)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

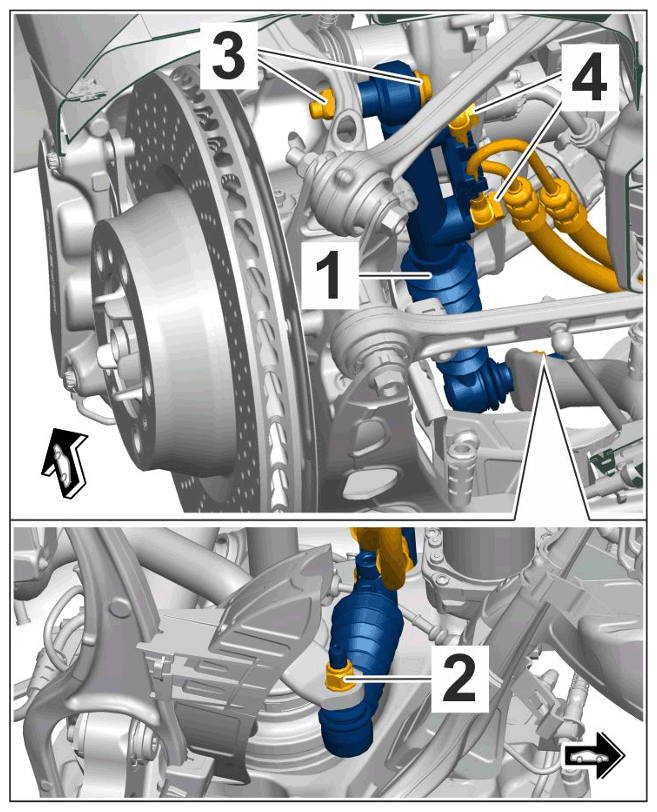

Mounting for connecting link (PDCC)

1. 3.1 Conventional connecting link  : Unscrew nut -3-  and counter at the articulated bolt on the connecting link.
2. 3.2 PDCC connecting link  : Loosen threaded joint -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

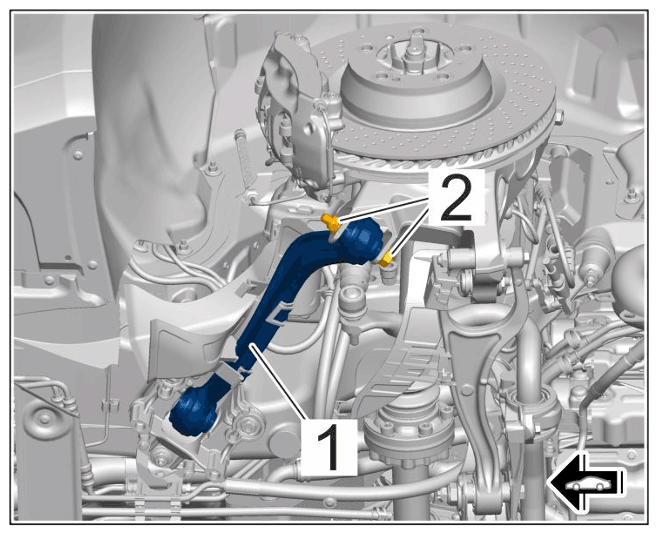

Mounting for trailing arm

1. 5.1 Loosen threaded joint -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

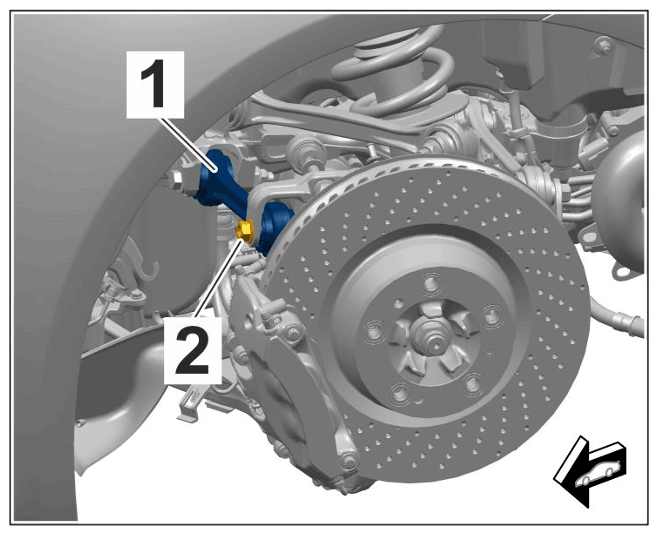

Mounting for control arm on wheel bearing housing

1. 6.1 Loosen threaded joint -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

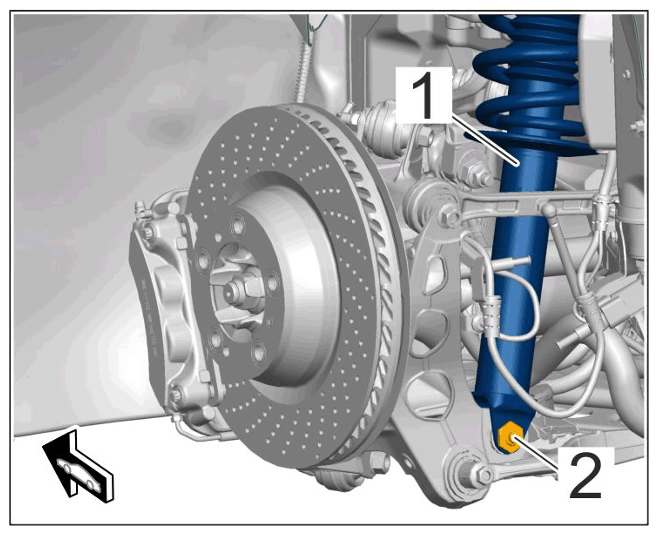

Mounting for rear spring strut on wheel bearing housing

1. 7.1 Loosen threaded joint -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

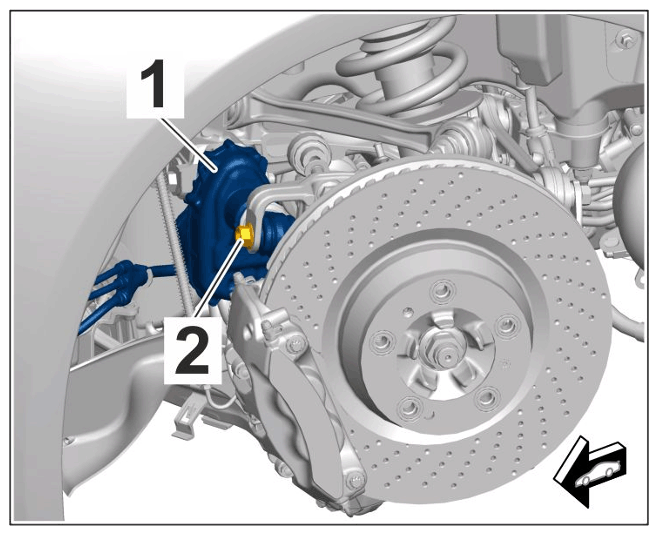

Mounting for tie rod on wheel bearing housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for servo motor for rear axle steering on wheel bearing housing

1. 8.1 Unscrew screw -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

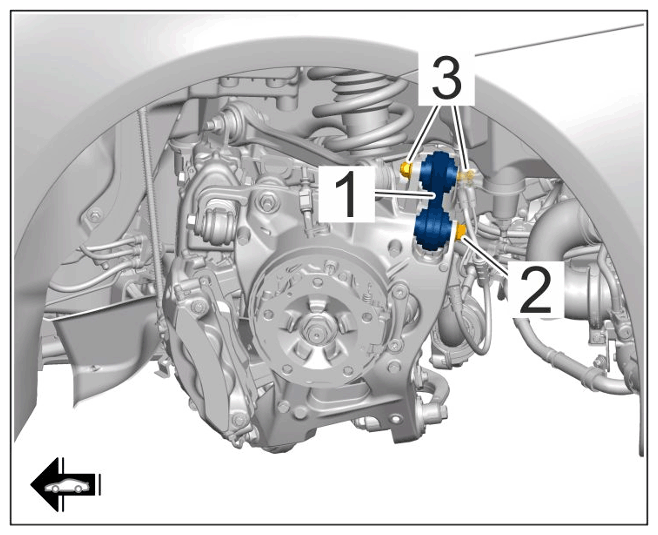

Mounting for upper control arm (front)

1. 9.1 Loosen threaded joint -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

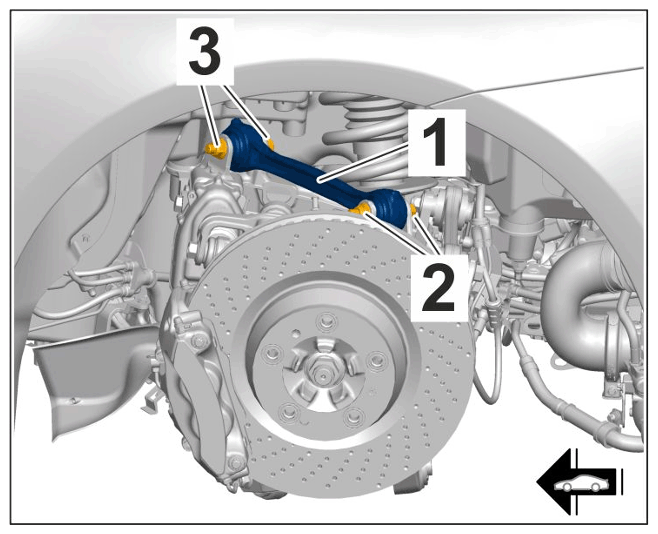

Mounting for upper control arm (rear)

1. 10.1 Unscrew screw -2-  on the wheel bearing housing.
