Installing Rear-Axle Carrier Side Section

  1. Fit rear-axle carrier side section (the help of another person is required).

    Information

    The wheel suspension is tilted outwards at the top when starting work.

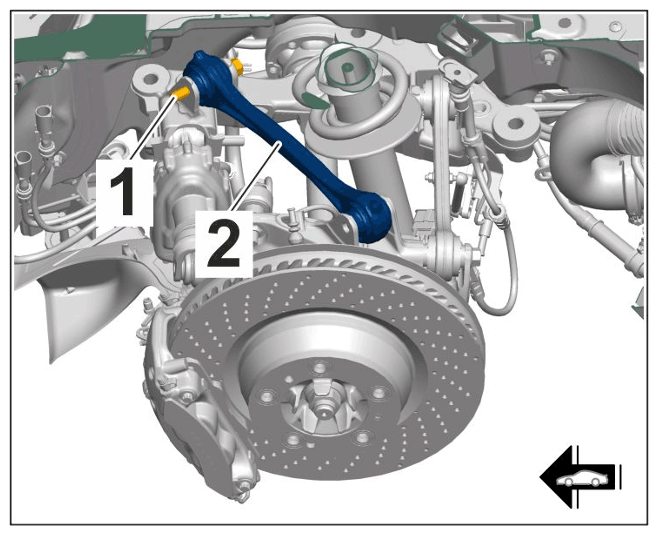

    1. 1.1 Fit upper control arm (front) -2-  on the rear-axle carrier side section.
      G15519558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (front) on rear-axle carrier side section

      1. 1.1.1 Position upper control arm (front) -2-  and screw -1-  in installation position.
    2. 1.2 Fit tie rod/servo motor for rear axle steering -2-  on the rear-axle carrier side section.

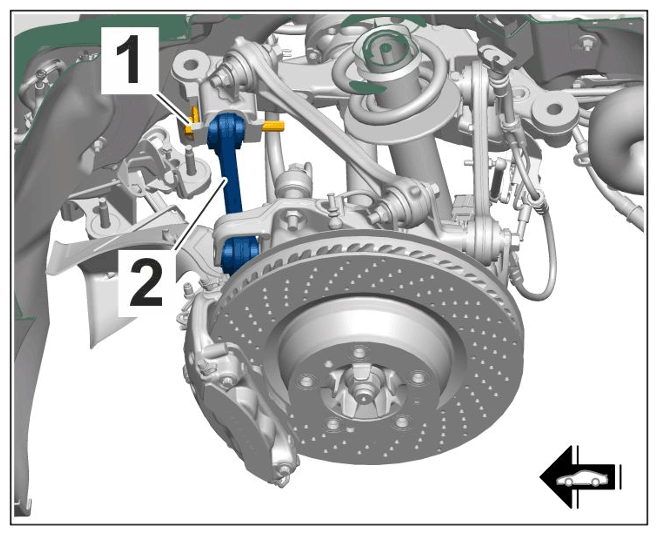

      G15519559Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for tie rod on rear-axle carrier side section

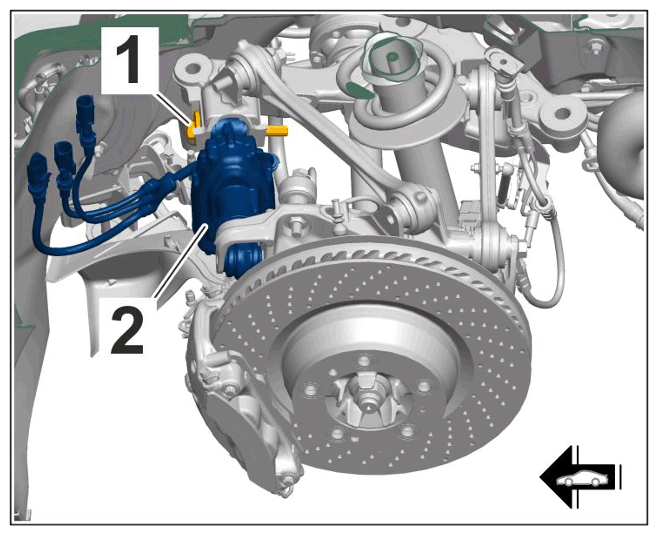

      G15519560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for servo motor for rear axle steering on the rear-axle carrier side section

      1. 1.2.1 Move tie rod/servo motor for rear axle steering -2-  and eccentric screw -1-  into installation position.
  2. Fit rear-axle carrier side section.
    1. 2.1 Move rear-axle carrier side section into installation position.
    2. 2.2 Tighten screws -2-  on the rear-axle carrier side section -1-  . >Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 180°
    3. 2.3 Tighten nut -3-  on the rear-axle carrier side section -1-  . >Initial tightening 90 Nm (66.4 ftlb.)  > Final tightening + 90°

      If stud on -item 3-  was loosened, this must be tightened beforehand. >Tightening torque 30 Nm (22.1 ftlb.)

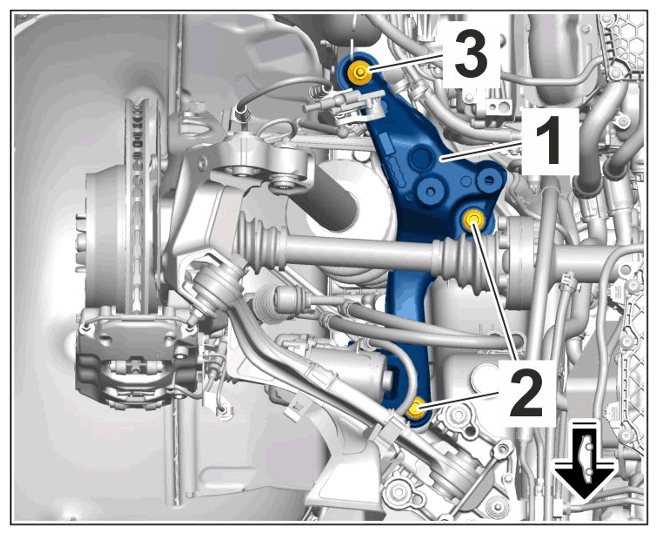

    G15519561Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear-axle carrier side section

  3. Tighten threaded joints in zero position.
    WARNING: Wheel bearing housing raised incorrectly
    • Risk of crushing
    • Risk of damage to components

      → Wear personal protective gear.

      → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

    Information

    Threaded joints must only be tightened in zero position to prevent warping in the bearings.

    1. 3.1 Lift the wheel bearing housing as far as required using lifting equipment (e.g. >VAS 6931 - Transmission and Engine Jack  ) until the lower trailing arm is horizontal. >Zero position of rear axle

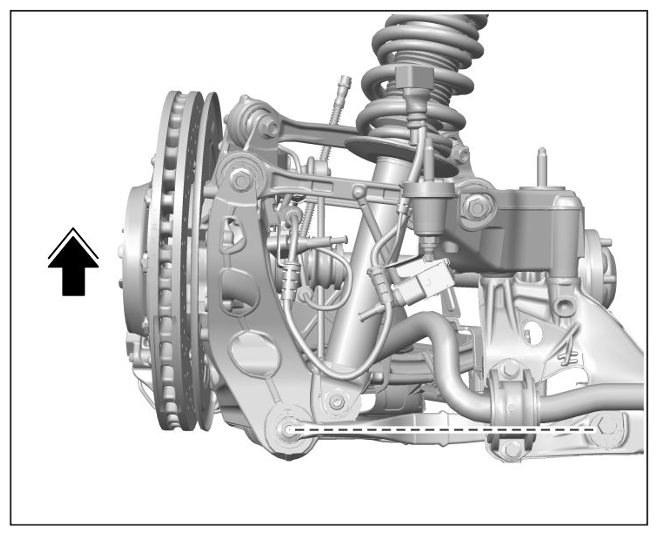

      G15519562Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Zero position of rear axle

    2. 3.2 Secure upper control arm (front) -1-  on the rear-axle carrier side section.

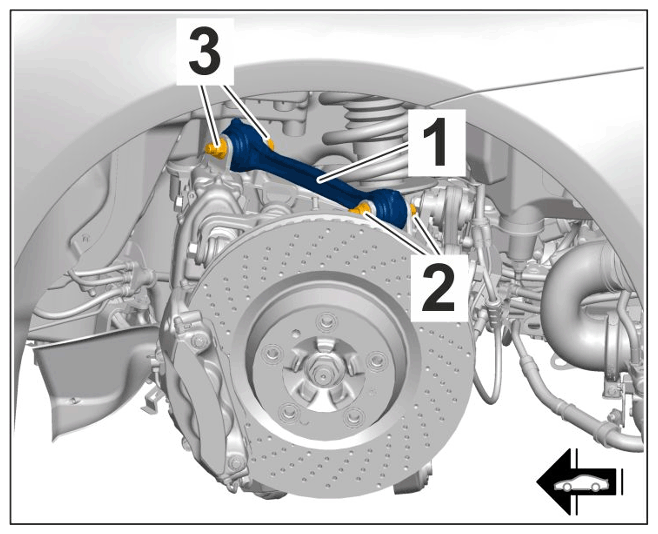

      G15519563Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (front)

      1. 3.2.1 Tighten threaded joint -3-  . >Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening angle + 180°
    3. 3.3 Fit upper control arm (rear) -1-  on the rear-axle carrier side section.

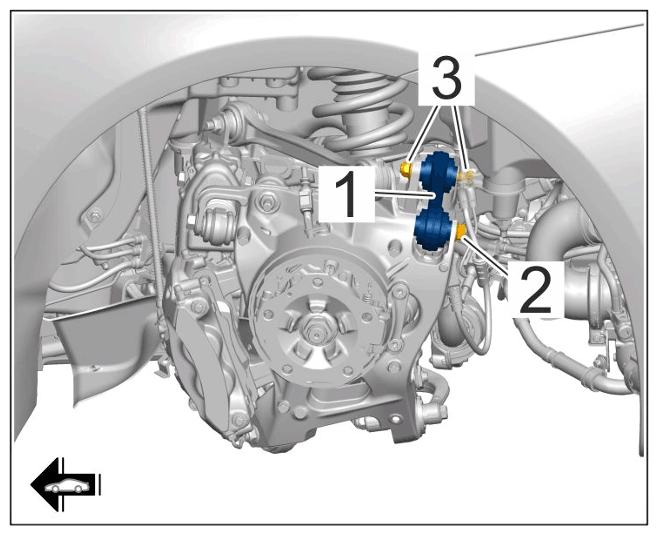

      G15519564Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (rear)

      1. 3.3.1 Tighten threaded joint -3-  on the rear-axle carrier side section. >Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening torque angle + 180°
    4. 3.4 Secure tie rod/servo motor for rear axle steering -1-  on rear-axle carrier side section.

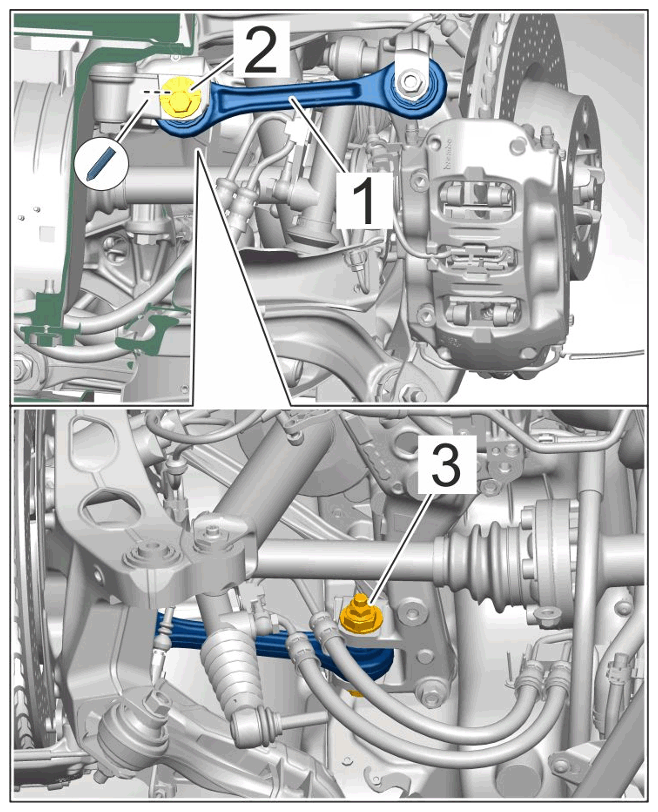

      G15519565Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for tie rod on rear-axle carrier side section

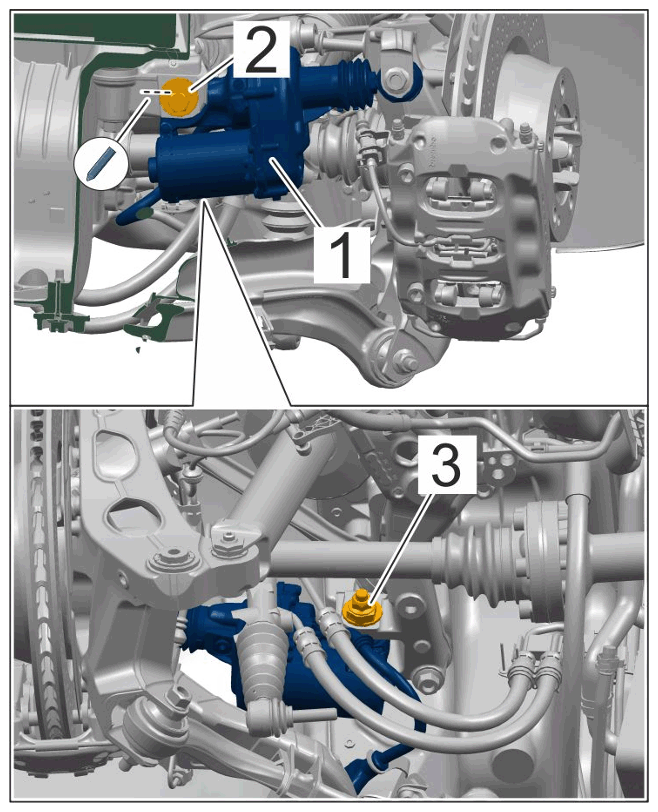

      G15519566Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for servo motor for rear axle steering on rear-axle carrier side section

      1. 3.4.1 Align eccentric position -2-  according to the marking.
      2. 3.4.2 Tighten nut -3-  . >Tightening torque 100 Nm (73.8 ftlb.)

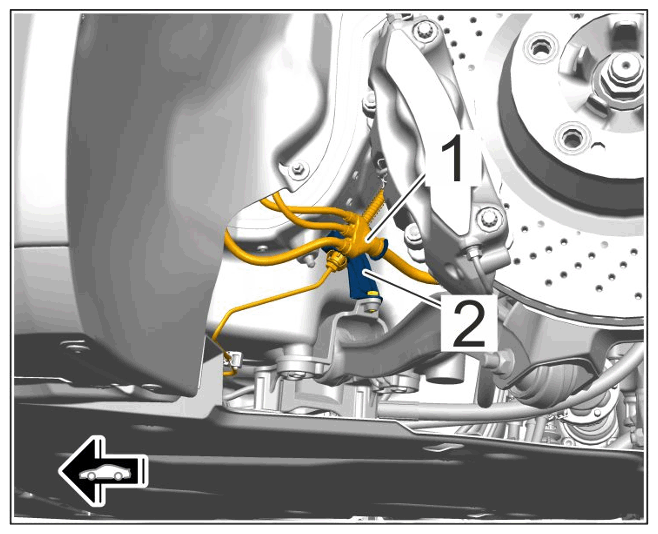

  4. Only for vehicles with rear axle steering  : Secure wire harness for rear axle steering -1-  on the holder -2-  .
    G15519567Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for rear axle steering

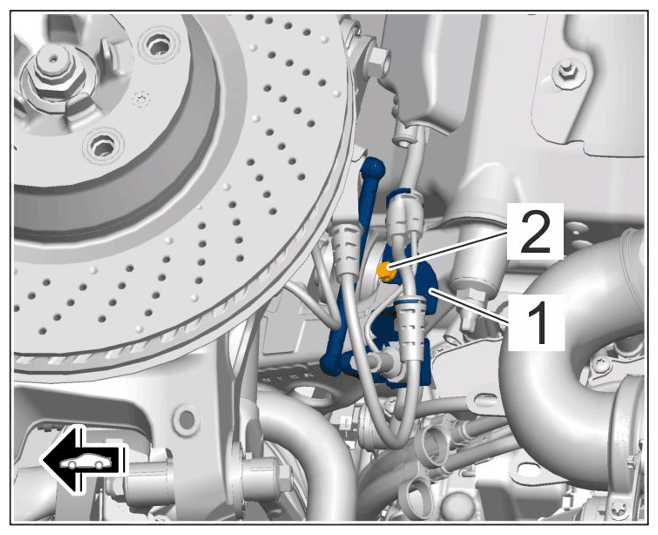

  5. Fit holder for angle sensor for headlight beam adjustment -1-  on the rear-axle carrier side section.
    G15519568Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for angle sensor for headlight beam adjustment

    1. 5.1 Tighten screw -2-  . >Tightening torque 8 Nm (6 ftlb.)
  6. Fit the drive shaft -1-  on the transmission flange.
    G15519569Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for drive shaft on transmission flange

    1. 6.1 Fit plates and tighten screws -2-  (turn the drive shaft in order to access the screws). >Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening torque angle + 110°
