Replacing Control Arm

Remove control arm -1- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

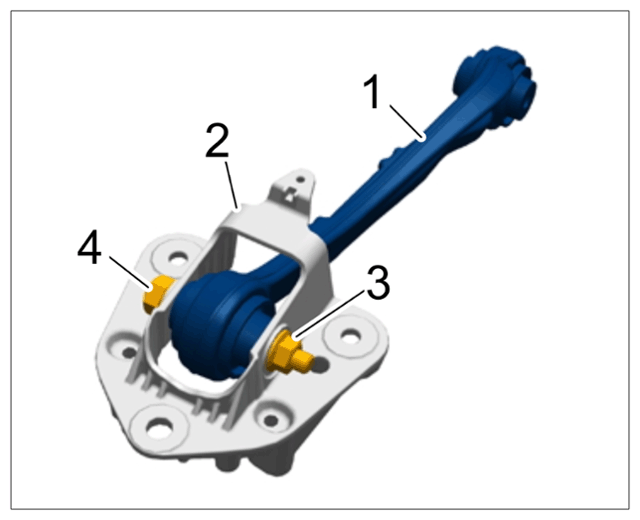

Mounting for control arm on bracket
1. 1.1 Unscrew nut -3- and counter at screw -4- .
Fit new control arm -1- on bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for control arm on bracket
1. 2.1 Insert screw -4- and tighten nut -3- . >Initial tightening 70 Nm (51.6 ftlb.) > Final tightening + 180°
