Technical Values

Location	Description	Type	Basic value
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Final tightening	+ 180°
Bracket to body	Hexagon-head bolts, M10 x 50	Tightening torque	55 Nm (40.6 ftlb.)
Bracket to body	Hexagon nut, M10	Tightening torque	65 Nm (47.9 ftlb.)
Bracket to body	Stud, M10 x 68.5	Tightening torque	25 Nm (18.4 ftlb.)

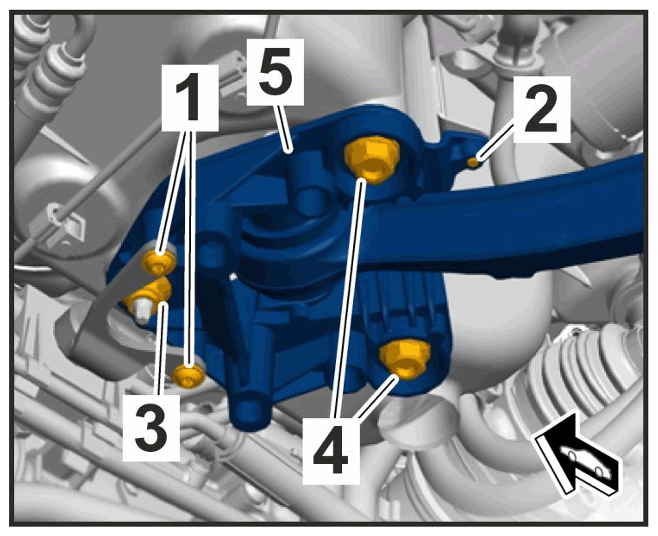

Holder for distributor/pressure lines to control arm bracket (left side of vehicle)	Hexagon roundhead bolt, M6 x 16 (item 1)	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bracket

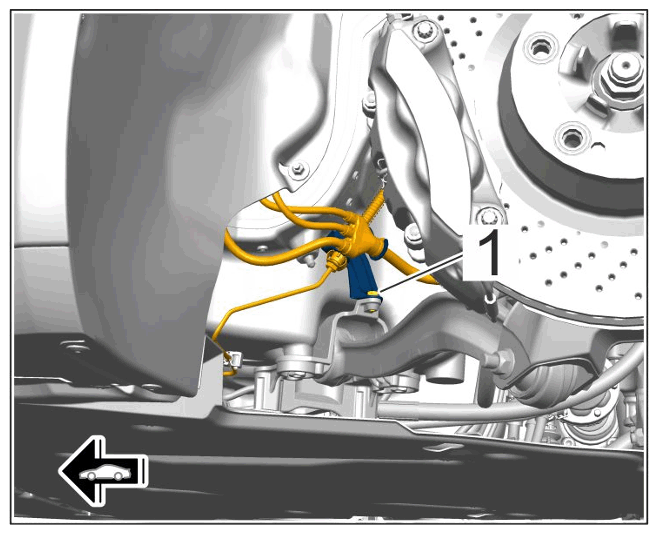

Brake line holder to control arm bracket	Hexagon-head bolt, M6 x 16	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line holder
