Removing Upper Control Arm (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Angle sensor for headlight beam adjustment to upper control arm (rear)

1. 1.1 Unscrew nut -2-  and counter at the joint bolt.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

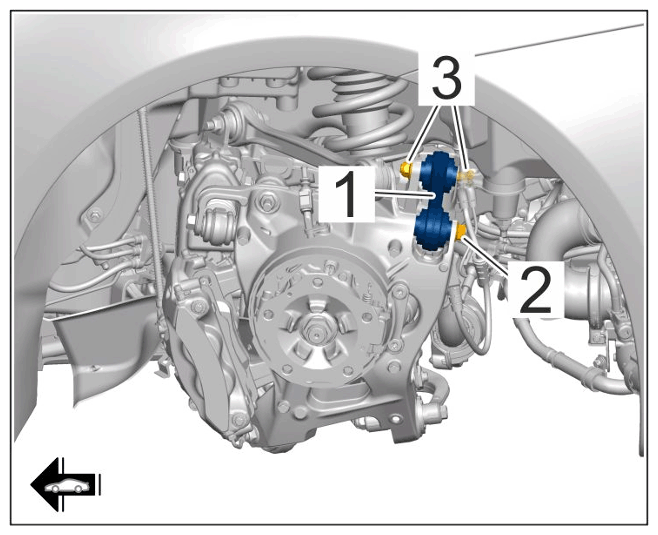

Upper control arm (rear)

1. 2.1 Unscrew screw -2-  on the wheel bearing housing.
2. 2.2 Remove screw -3-  for rear-axle carrier side section, counter nut -3-  when doing so.
3. 2.3 Remove upper control arm (rear) -1-  .
