Installing Drive Shaft

Information

Make sure that the drive shaft does not hang down as this may damage the joint.

1. On used and new drive shafts, clean the bores -2-  on the inner flange -1-  with a cloth soaked in brake cleaner.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

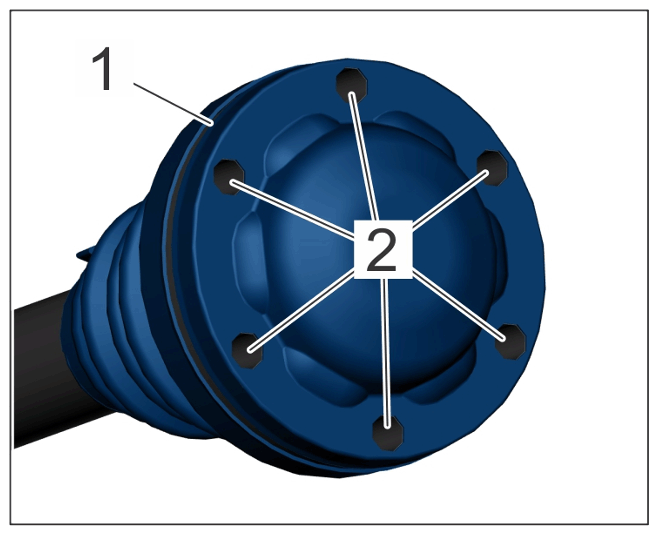

   Inner flange bores

2. Grease drive shaft splines with Molub Alloy Paste TA. >Drive shaft splines

   The threading must not be greased!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

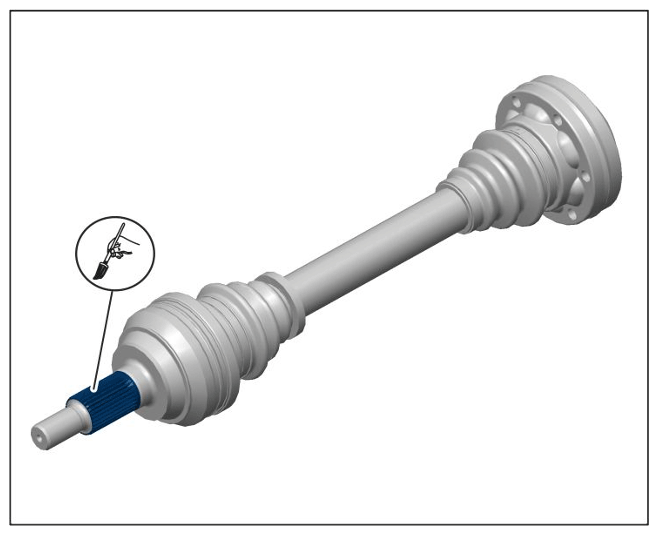

   Drive shaft splines

3. Position drive shaft in installation position and pull it into the wheel hub with the old nut initially.
4. Attach drive shaft -1-  at the transmission flange.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening drive shaft on transmission flange (left)

   1. 4.1 Replace new screws and plates.
   2. 4.2 Tighten screws -2-  (with plates). (Turn the drive shaft so that the screws are accessible).

      > Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening torque angle + 110°

   Tightening method for securing drive shaft to wheel hub after re-using drive shaft:

5. Tighten new hex nut -1-  using >VAS 6942 - torque -angle - spanner 20-400 Nm (15-295 ftlb.)  and >9471 - socket spanner  .

   Another person is needed in order to actuate the service brake.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip - Drive shaft to wheel hub

   1. 5.1 Initial tightening of new lock nut:>Initial tightening torque 120 Nm (88.5 ftlb.)  > Final tightening rotation angle + 120°

   Tightening procedure for securing drive shaft to wheel hub after replacing drive shaft:

6. Secure drive shaft to wheel hub.

   Another person is needed in order to actuate the service brake.

   Tighten new nut in steps using >VAS 6942 - torque -angle - spanner 20-400 Nm (15-295 ftlb.)  .

   1. 6.1 Fit new nut -1-  .
   2. 6.2 Tighten nut -1-  in steps.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

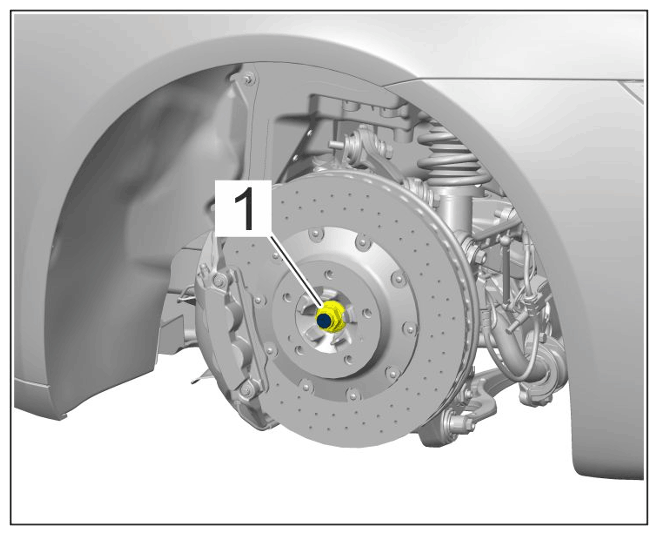

      Nut securing drive shaft to wheel hub

      For vehicles with central wheel bolt, use >9471 - socket wrench  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

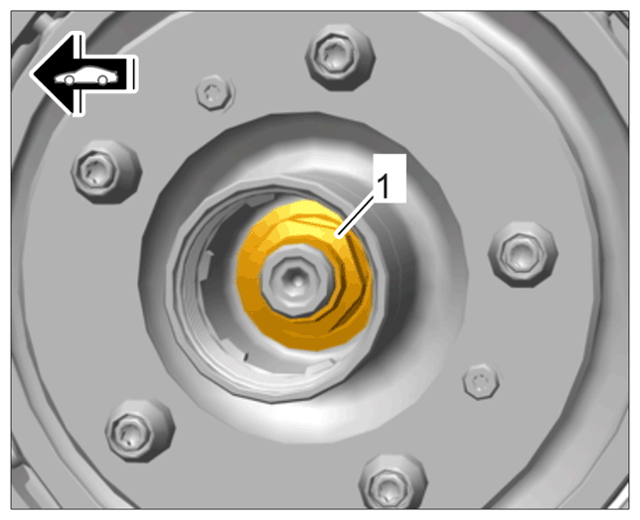

      Wheel hub on central bolt

      1. 6.2.1 Initial tightening: >1. Step 260 Nm (191.8 ftlb.)
      2. 6.2.2 Torque angle: >2. Step + 120°
      3. 6.2.3 Loosen nut: >3. Step - 360°
      4. 6.2.4 2. Initial tightening: >4. Step 120 Nm (88.5 ftlb.)
      5. 6.2.5 Final tightening torque angle: >5. Step + 120°
