| Strut to body |
M12 x 1.5 x 40/always use new bolts following removal |
Initial tightening |
70 Nm (51.6 ftlb.) |
|
|
| Brace to body |
M12 x 1.5 x 40/always use new bolts following removal |
Final tightening |
+ 90° |
|
|
| Strut to mounting for longitudinal arm |
Cheese head bolt, M10 x 45 |
Tightening torque |
55 Nm (40.6 ftlb.) |
|
|
| Strut to rear-axle carrier |
M12 x 1.5 x 45/always use new bolts following removal |
Initial tightening |
30 Nm (22.1 ftlb.) |
|
|
| Brace to rear-axle carrier |
M12 x 1.5 x 45/always use new bolts following removal |
Final tightening |
+ 90° |
|
|
| Strut to body (Cabriolet only) |
Item 5: Hexagon-head bolt M8 x 25 |
Tightening torque |
30 Nm (22.1 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

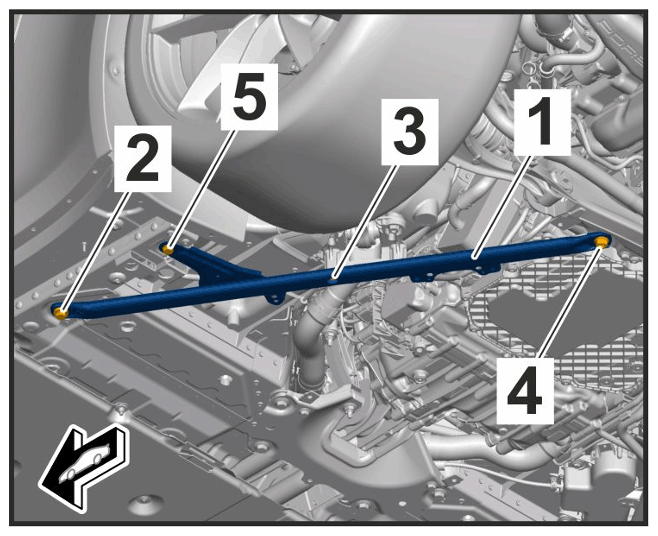

Mounting for strut on Cabriolet |
