Home >> Porsche >> 2021 >> 911 Targa 4 >> Repair and Diagnosis >> Suspension >> Rear Suspension >> 42 Rear Wheel Suspension Drive Shaft 3.0L (Eng Code MDK.Ca) -- 992 - 911 CARRERA (992) >> WM, 421319 Removing And Installing Strut >> Removing And Installing Strut >> Removing Strut

Removing Strut

  1. Remove strut -1-  .

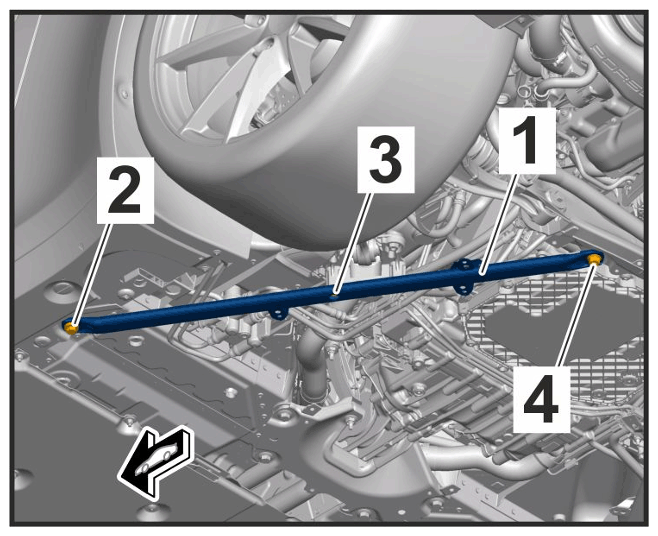

    G15519457Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

    1. 1.1 Unscrew and remove screws -2 to 4-  .


  1. Remove strut -1-  .

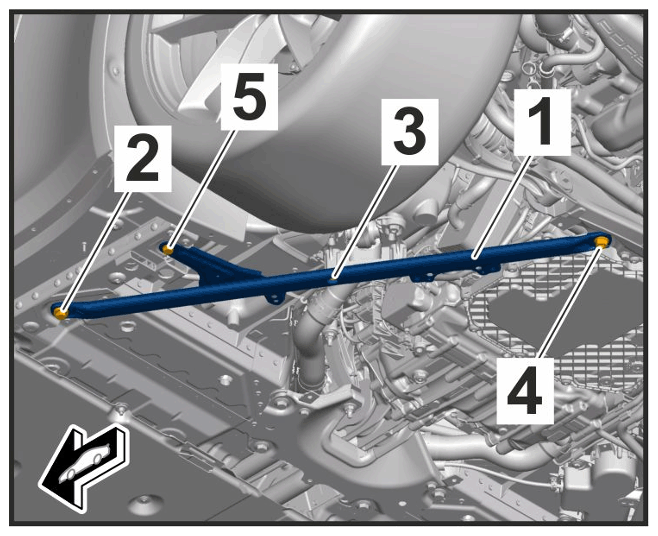

    G15519461Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

    1. 1.1 Unscrew and remove screws -2 to 5-  .
