Installing Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

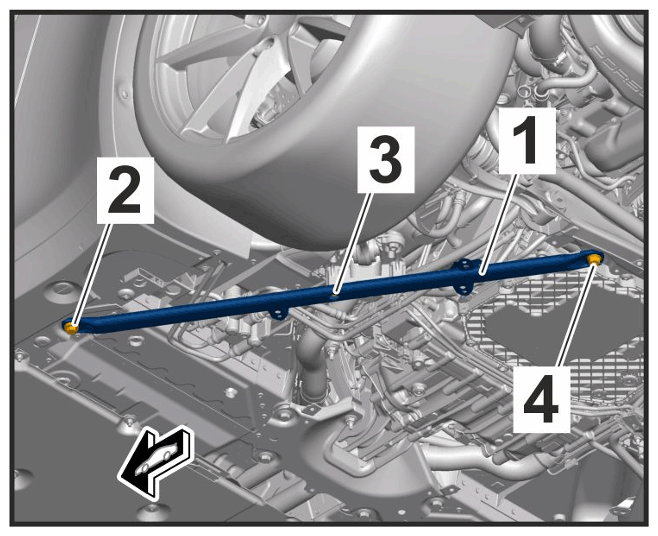

Strut mounting

1. 1.1 Tighten screw -2-  . >Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 90°
2. 1.2 Tighten screw -3-  . >Tightening torque 55 Nm (40.6 ftlb.)
3. 1.3 Tighten screw -4-  . >Initial tightening 30 Nm (22.1 ftlb.)  > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

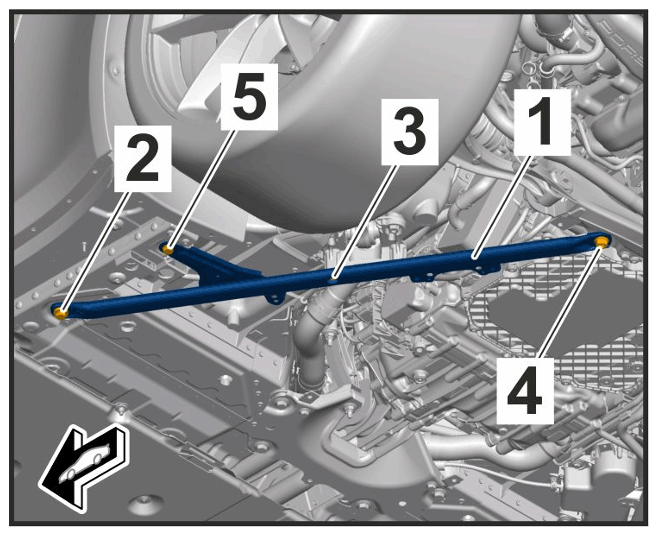

Strut mounting

1. 1.1 Tighten screw -2-  . >Initial tightening 70 Nm (51.6 ftlb.)  > Final tightening + 90°
2. 1.2 Tighten screw -3-  . >Tightening torque 55 Nm (40.6 ftlb.)
3. 1.3 Tighten screw -4-  . >Initial tightening 30 Nm (22.1 ftlb.)  > Final tightening + 90°
4. 1.4 Tighten screw -5-  . >Tightening torque 30 Nm (22.1 ftlb.)
