Removing Rear Axle Carrier

Information

Rear-axle carrier is removed together with the anti-roll bar.

1. Remove anti-roll bar on both sides of the vehicle from the connecting link -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

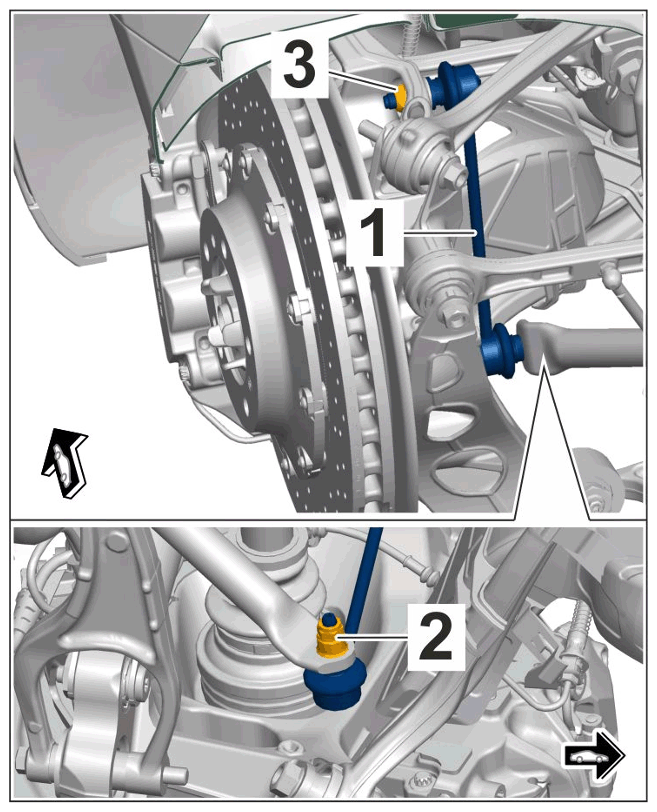

   Mounting for connecting link (conventional)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

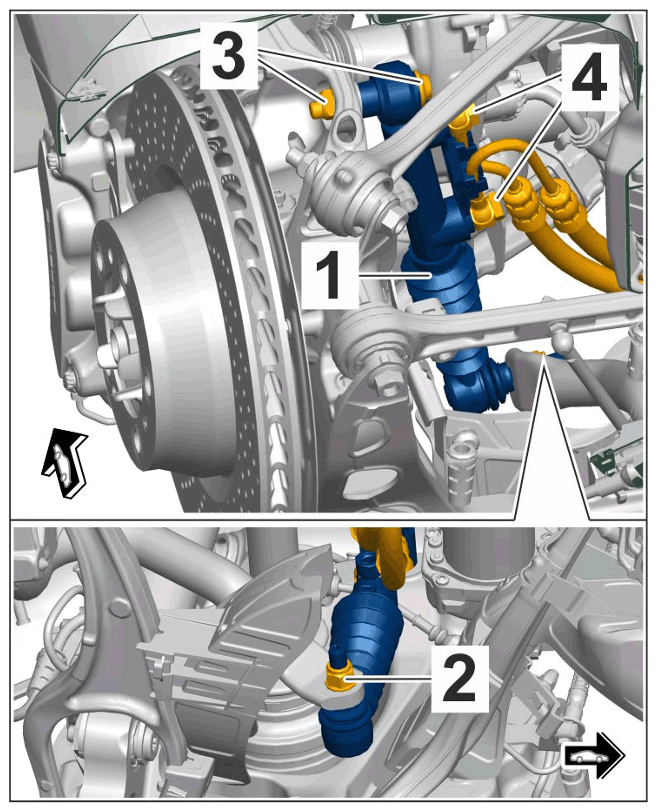

   Mounting for connecting link (PDCC)

   1. 1.1 Unscrew nut -2-  and counter at the articulated bolt on the connecting link.
2. Remove rear axle carrier -1-  on both sides of the vehicle from the rear axle carrier side section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

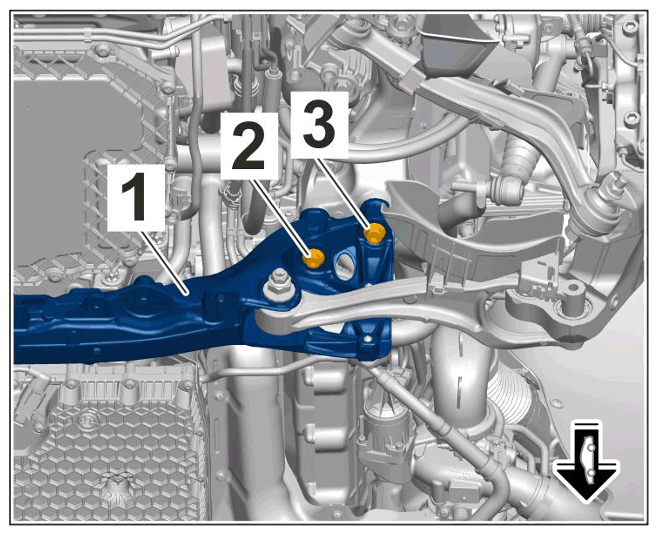

   Rear axle carrier mounting

   1. 2.1 Support rear axle carrier with >VAS 6931 - Transmission and Engine Jack  .
   2. 2.2 Unscrew and remove screws -2 and 3-  .
   3. 2.3 Lower the rear axle carrier.
