Installing Front Pressure Line

Route front pressure line at the left or right and secure it at the retaining clips.
Fit and tighten cap screw -2- on the distributor -1- in the tunnel.
> Tightening torque 14 Nm (10.3 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic line on distributor in the tunnel
Fit decoupler -1- pressure line -2- in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

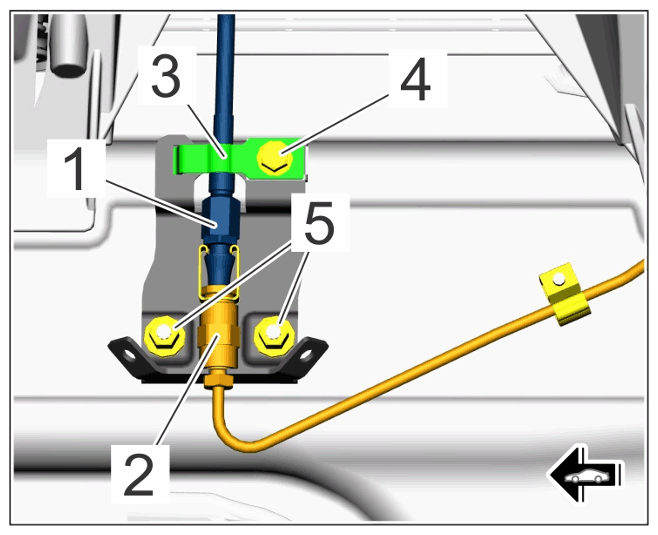

Decoupler on front axle lift pressure line
1. 3.1 The clamp on the decoupler -1- must engage.
2. 3.2 Install connection line holder -3- . Fit and tighten screw -4- .
  > Tightening torque 4 Nm (3 ftlb.)
