Installation Overview Of Front Axle Lift System
Lift system 992 vehicles:

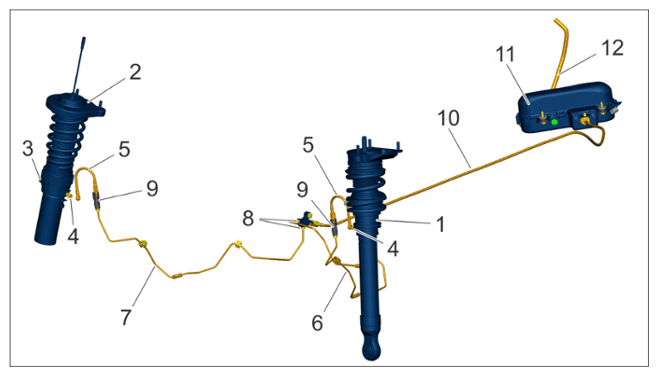

Overview of front axle lift system
| 1 | Spring strut GT3 vehicles |
| 2 | Spring strut, every 992 without GT3 |
| 3 | Bleeder valve (not GT3) |
| 4 | Banjo bolt for connecting line |
| 5 | Connecting line for spring strut |
| 6 | Front pressure line left |
| 7 | Front pressure line right |
| 8 | Cap screw securing pressure lines on distributor |
| 9 | Plug connection for connecting line to pressure line |
| 10 | Pressure line from hydraulic pump to distributor |
| 11 | Hydraulic pump/compressor |
| 12 | Electric connecting line with cable plug |
Recommended tools for loosening the clamps on the plug connections:

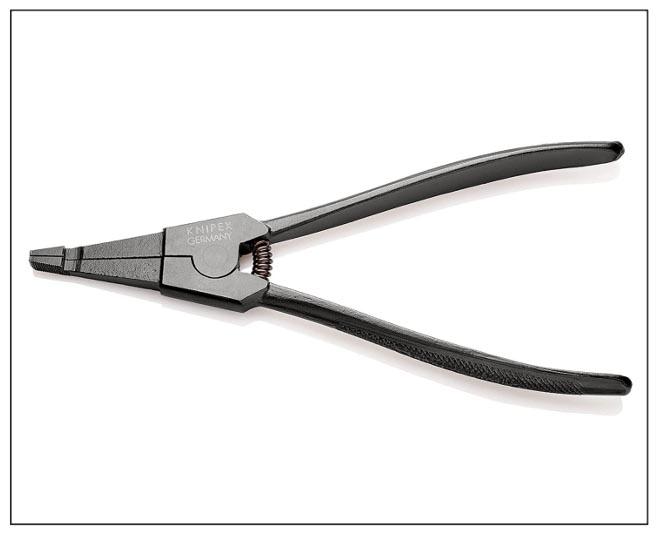

Snap ring pliers with flat nose (for example Knipex pliers).
Snap ring pliers with flat nose
