Removing Air-Lift Pump Control Unit (Front Axle Lift System)

1. Remove expansion rivet on control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

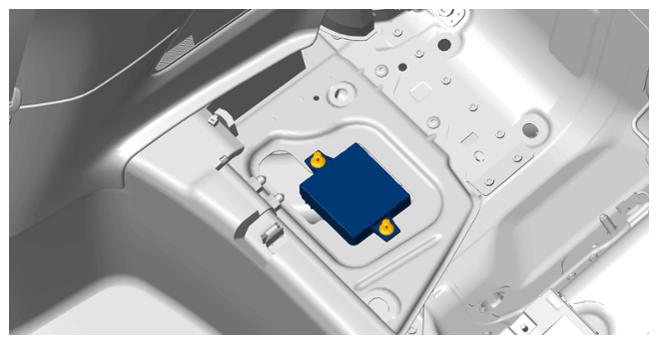

   Expansion rivet on control unit

   1. 1.1 Depending on the production period of the vehicle, screws may also be installed instead of the expansion rivets.
2. Remove air-lift pump control unit until the electric plug connection is accessible.
3. Release electric plug connection and unplug it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

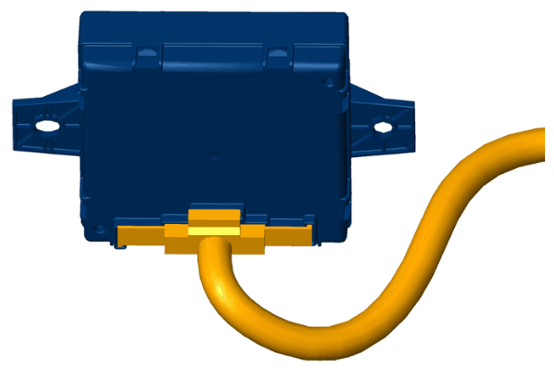

Electric plug connection
