Removing PASM Control Unit

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Release electric plug connection -1- (-arrow A- ) and disconnect it -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

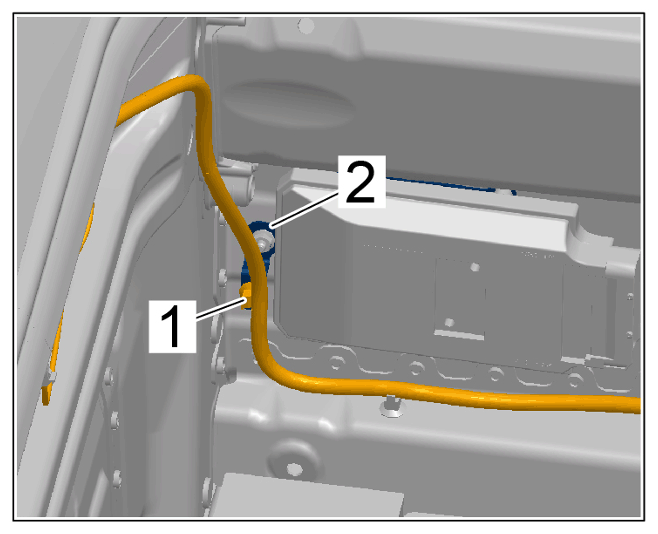

Unclip line bracket -1- from the PASM control unit holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

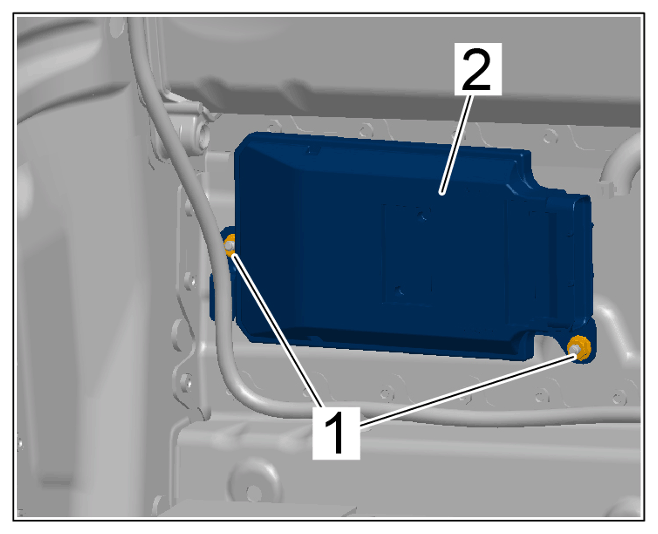

Unscrew fastening nuts -1- and remove PASM control unit -2- with holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
Only when replacing the PASM control unit:

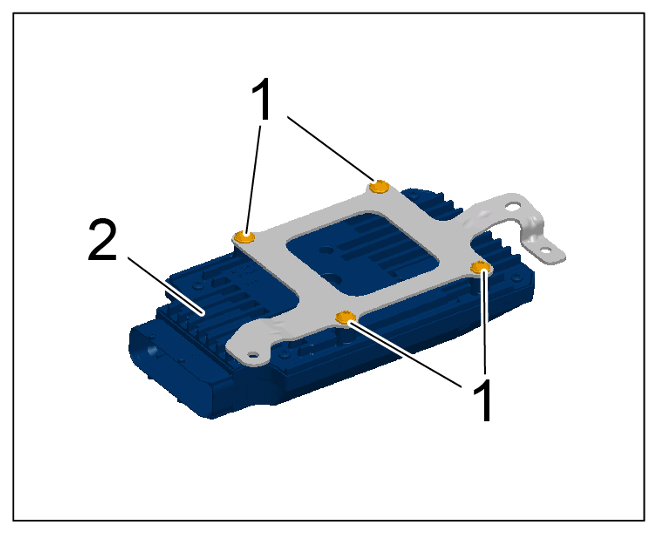

Unscrew fastening screws -1- and remove PASM control unit holder from PASM control unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
