Installing PASM Control Unit

1. Installation is performed in reverse order. Pay particular attention to the following:

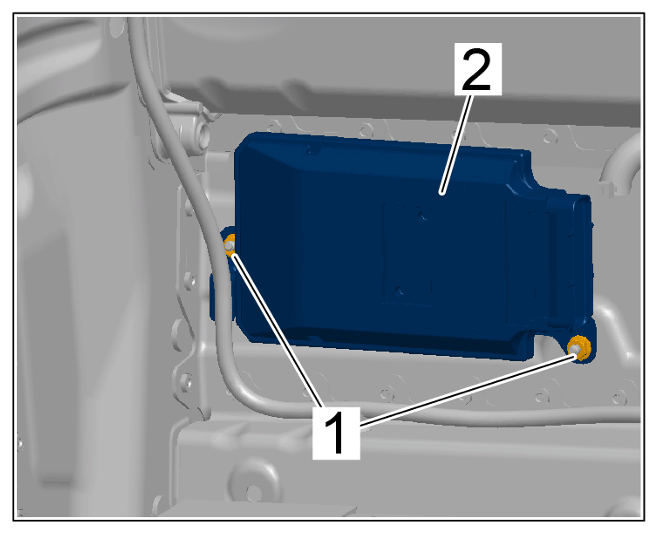

   Tighten fastening screws -1-  to >Tightening torque 5.7 Nm (4.2 ftlb.)  until secure.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

   Tighten fastening nuts -1-  to >Tightening torque 8 Nm (6 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts
