Removing Compressor (Front Axle Lift System)

Information

• The compressor for the front axle lift system is only available together with the pressure line connected to the compressor.
• When removing and installing the compressor, the pressure line (up to the connection point at the distributor) must therefore be removed and installed as well.
• The compressor housing must not be opened.

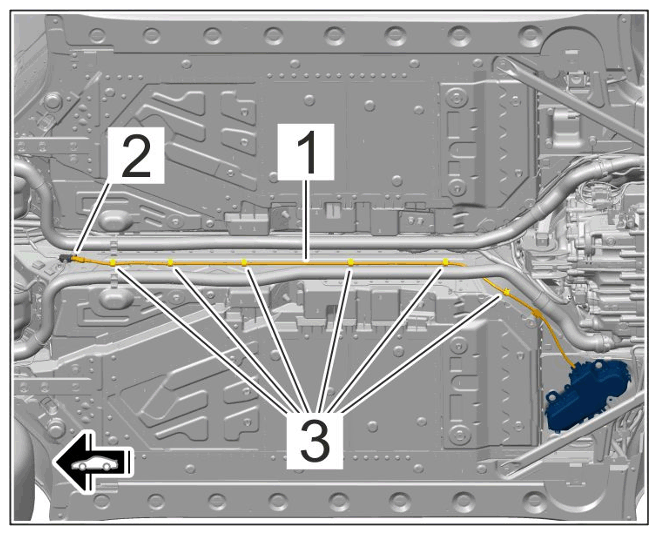

1. Disconnect pressure line -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressure line

   1. 1.1 Loosen pressure line using suitable pliers on the distributor (T-piece) -2-  .
   2. 1.2 Loosen pressure line from brackets -3-  .
2. Remove compressor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Compressor

   1. 2.1 Release and unplug electric plug connection -2-  .
   2. 2.2 Unscrew and remove screws -3-  .
