Installing Compressor (Front Axle Lift System)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

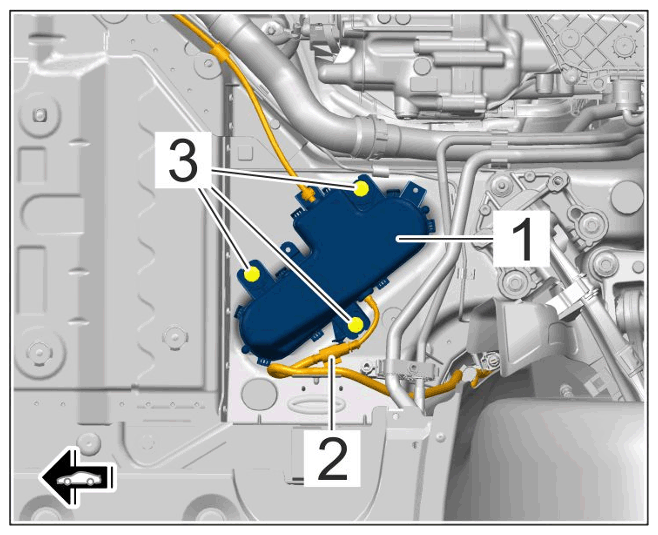

Compressor

1. 1.1 Tighten screws -3-  . >Tightening torque 10 Nm (7.4 ftlb.)
2. 1.2 Connect and lock electric plug connection -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure line

1. 2.1 Secure pressure line in brackets -3-  .
2. 2.2 Secure pressure line to the distributor (T-piece) -2-  .
