Removing Reservoir

WARNING: Caustic fluids

Danger of chemical burns
→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ Avoid contact with caustic fluid.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Set the pump down on a suitable absorbent cloth. Use a drip pan if possible.
Unscrew and remove screws -1- .
Disconnect reservoir -2- from the pump -3- (-arrow- ).
Check sealing ring -4- for damage or cracks and replace it if necessary.

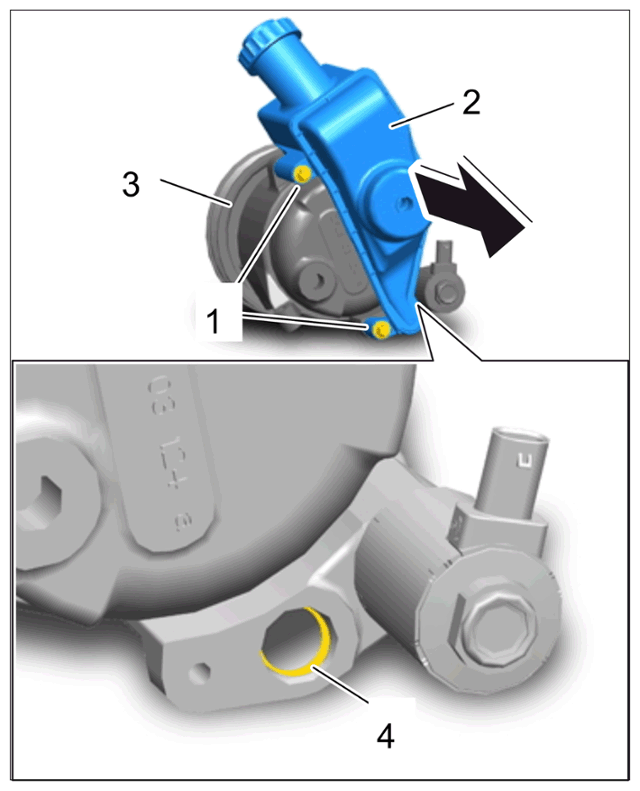

G15519749

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing reservoir
