Installing Reservoir

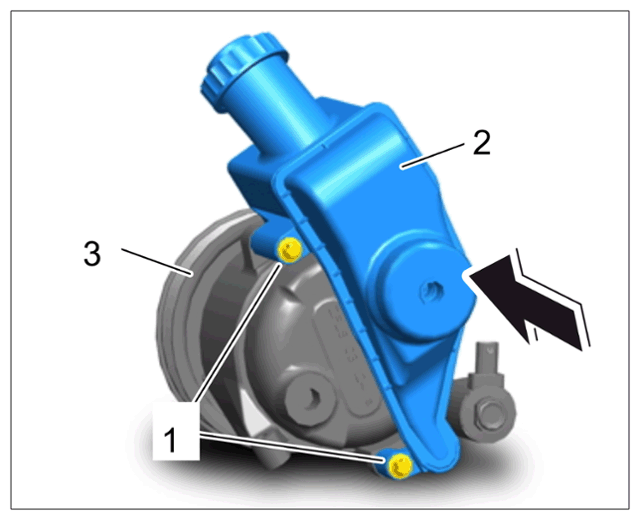

1. Fit reservoir -2-  on the pump -3-  (-arrow-  ).
2. Tighten screws -1-  .

   Top screw >Tightening torque 10 Nm (7.5 ftlb.)  .

   Bottom screw >Tightening torque 10 Nm (7.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing reservoir
