Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Rear-axle valve block to body Hexagon-head bolt, M6 x 30 Tightening torque 10 Nm (7.5 ftlb.)
G15519711Courtesy of PORSCHE CARS NORTH AMERICA, INC.

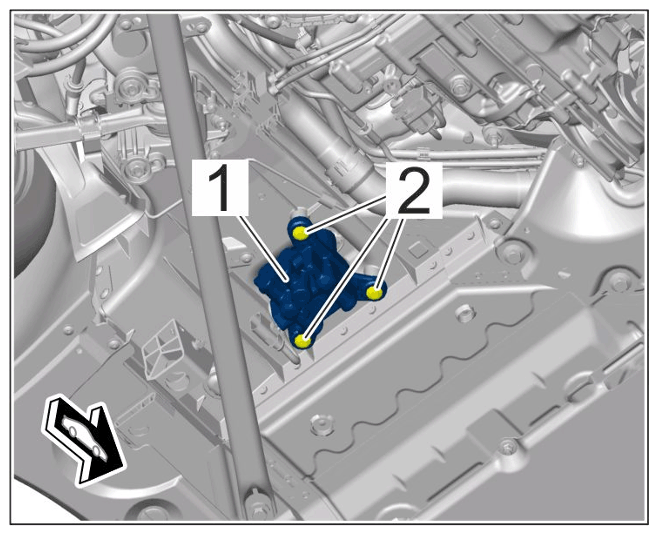

Valve block mounting (rear)
