Installing Valve Block (Rear)
NOTE:
Incorrect line routing
- Risk of damage to lines and hoses
- Malfunction and fault memory entry on control unit
→ Avoid small bending radii when routing lines.
→ File down edges and burrs in the routing area or mask them with adhesive tape.
→ Maintain a sufficient distance from components exposed to high temperatures while driving.
- Fit rear valve block -1-
.

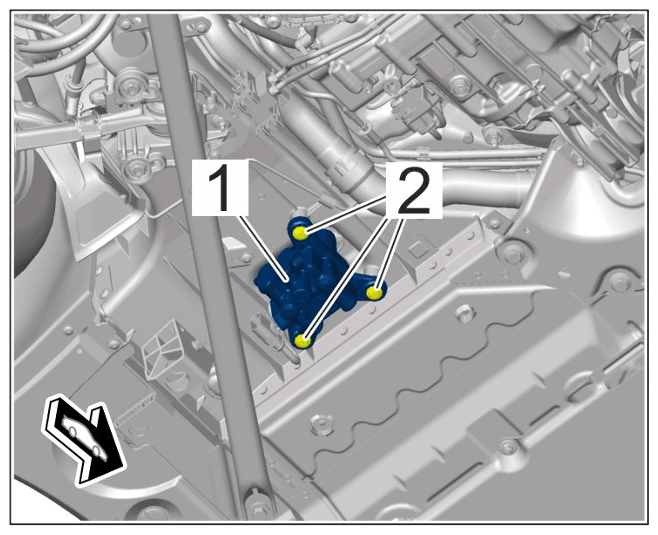

Valve block mounting (rear)
- 1.1 Tighten screws -2- . >Tightening torque 10 Nm (7.5 ftlb.)
- Connect and lock electric plug connection -1-
on the valve block (rear) -2-
.

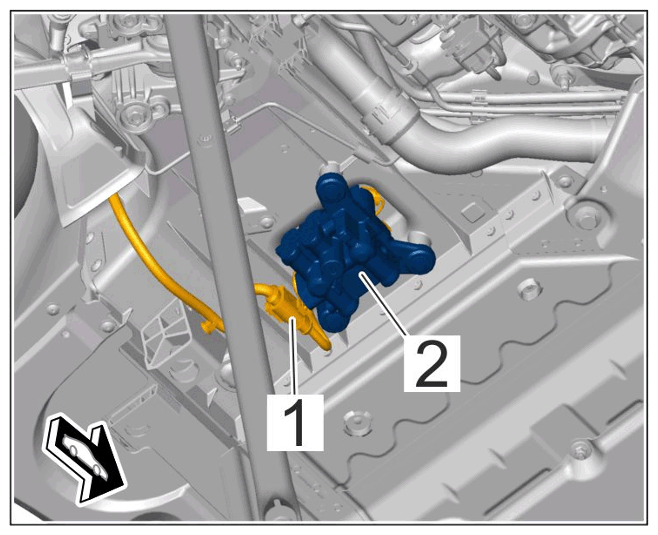

Electric plug connection on valve block (rear)
- Fit hydraulic lines -1-
on the valve block -2-
.

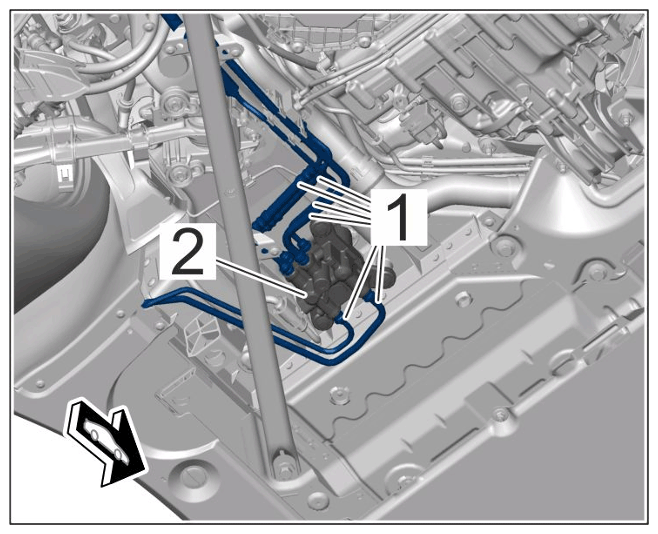

Hydraulic lines on valve block (rear)
- 3.1 Remove stoppers.
- 3.2 Assign hydraulic lines according to markings (see information on "Removing").
- 3.3 Insert hydraulic lines until they engage securely.
